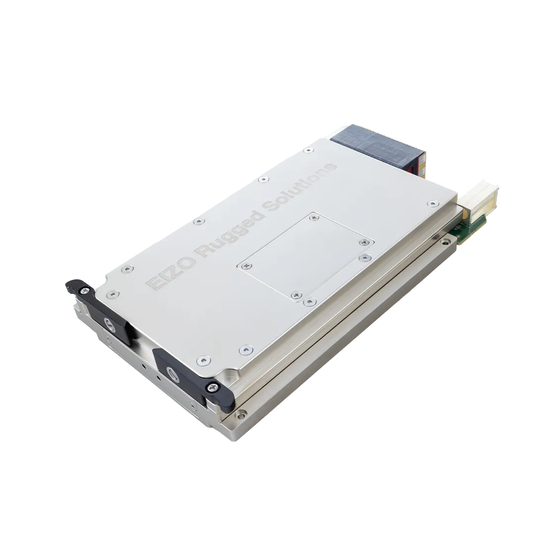

NVIDIA Jetson AGX Orin 64GB equipped embedded 3U VPX single-board computer
The Condor AGX-ORIN64-HPC is a robust 3U VPX high-performance single board computer (SBC) designed for autonomous and embedded edge computing systems. It features the NVIDIA Jetson AGX Orin 64GB (Industrial) System on Module (SoM), which is equipped with an NVIDIA Ampere architecture GPU and a 12-core Arm Cortex-A78AE CPU. The module's 64GB LPDDR5 system memory achieves a maximum memory bandwidth of 205 GB/s, shared among the internal CPU, GPU, and accelerator engines. It is equipped with HEVC (H.265)/AVC (H.264) compliant NVENC and NVDEC engines, supporting up to 4K-UHD encoding resolution. The AGX-ORIN64-HPC is designed to support both the VITA 46/65 and Sensor Open System Architecture (SOSA) technical standards for slot profile 14.6.11.
Inquire About This Product
basic information
【Main Specifications】 CPU/GPU: Equipped with a 12-core Arm Cortex-A78AE (2.2GHz) and a 2048-core NVIDIA Ampere GPU Memory: 64 GB LPDDR5 Networking: Equipped with NVIDIA ConnectX-7 SmartNIC. Supports 1x 100GbE (data plane) and multiple 25GbE ports. Storage: 64GB eMMC and up to 1TB NVMe SSD 【AI/Video Features and Expandability】 Accelerators: Built-in 2x NVDLA v2 Deep Learning Accelerators (1.6GHz). Codec: Dedicated NVENC/NVDEC engine supporting 4K/8K. PCIe: PCIe Gen 4 x8 | x4x4 interface 【Robustness and Standards】 Environmental Performance: Operating temperature -40°C to +85°C
Price range
Delivery Time
Applications/Examples of results
Embedded systems Military C5ISR Unmanned Aerial Vehicle Navy
