BOXER-8642AI

last updated：Jan 09, 2026

V-net AAEON

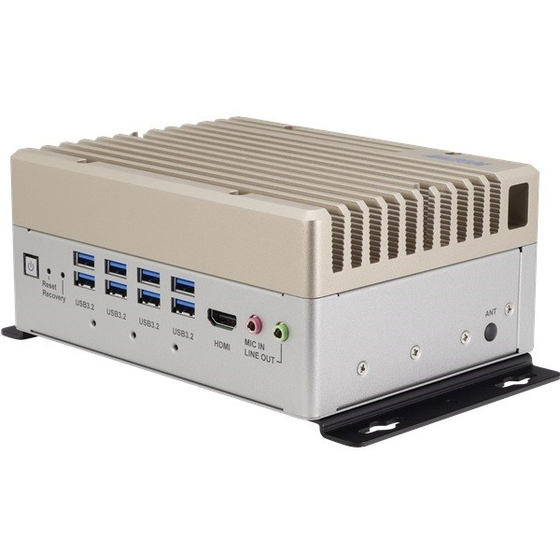

Fanless structure for long-term stable operation. High-reliability edge AI platform equipped with Jetson AGX Orin.

The 'BOXER-8642AI', designed for continuous operation in industrial applications, is an AI edge PC that features high durability and stability with a fanless chassis. Equipped with Jetson AGX Orin (32GB/64GB) and high-speed LPDDR5 memory, it delivers reliable processing performance in manufacturing inspections, robotics, logistics AI, and more. The interfaces include USB3.2 Gen2×8, LAN×2, and RS-232/422/485×2 (shared with CANBus FD), providing a comprehensive connectivity solution. Models with an AC adapter and wireless LAN support are also available to suit on-site environments. With Jetpack 5.1.1 pre-installed, users can smoothly start using the system from OS boot to AI inference environment. Please refer to the datasheet for detailed specifications.

Special site - Product/service details - https://pr.mono.ipros.com/vnet/product/

Inquire About This Product

basic information

【AI Solution】NVIDIA Jetson AGX Orin 32GB/64GB 【CPU】AGX Orin 32GB: 8-core Arm Cortex-A78AE, AGX Orin 64GB: 12-core Arm Cortex-A78AE 【Memory】32GB/64GB LPDDR5 onboard memory 【Storage】64GB eMMC onboard (*OS boot) 【Display】 HDMI2.0 x 1 【Front I/O】USB3.2 Gen2 (Type-A) x 8 (independent 10Gbps support), HDMI x 1, MIC IN x 1, LINE OUT x 1, reset button, recovery button, power button 【Rear I/O】LAN x 2, OS Flash, RS-232/422/485 (Rx/Tx) x 2 (1 port shared with CANBus FD), 2-pin power terminal, SMA antenna holes x 2 【Expansion】M.2 2230 E-Key x 1 (Wifi/BT), 2.5-inch SATA SSD drive bay x 1 For more details, please refer to the datasheet.

Price information

Others

Delivery Time

Please contact us for details

Applications/Examples of results

Applications: Edge PCs, AGVs, drones, robots, media centers, IoT edge devices, IoT controllers, AI, digital signage, etc.

Line up（6）

Model number	overview
【BOXER-8642AI-A1-5.1】	Nvidia Jetson AGX Orin with 32GB, equipped with 32GB LPDDR5 + 64GB eMMC on board, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, pre-installed with Jetpack 5.1.1.
【BOXER-8642AI-A1-AC-5.1】	Nvidia Jetson AGX Orin with 32GB, equipped with 32GB LPDDR5 + 64GB eMMC on board, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, pre-installed with Jetpack 5.1.1 + Power Adapter.
【BOXER-8642AI-A1-WIFI-AC-5.1】	Nvidia Jetson AGX Orin with 32GB, onboard 32GB LPDDR5 + 64GB eMMC, LAN x 2, USB 3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter + 802.11ac/a/b/g/n Dual-Band Wi-Fi + Bluetooth V5.0, 2T2R.
【BOXER-8642AI-A2-5.1】	Equipped with Nvidia Jetson AGX Orin 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed.
【BOXER-8642AI-A2-AC-5.1】	Nvidia Jetson AGX Orin with 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter.
【BOXER-8642AI-A2-WIFI-AC-5.1】	Nvidia Jetson AGX Orin with 64GB, onboard 64GB LPDDR5 + 64GB eMMC, LAN x 2, USB3.2 x 8, HDMI, DC 12~24V input, Jetpack 5.1.1 pre-installed + Power Adapter + 802.11ac/a/b/g/n Dual-Band Wi-Fi + Bluetooth V5.0, 2T2R.
