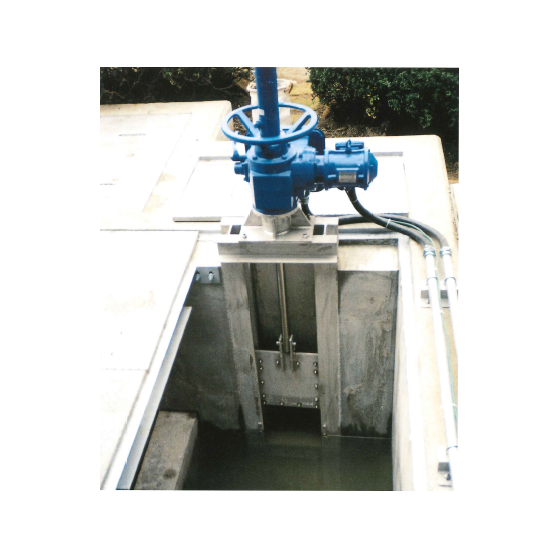

A gate that accurately detects abnormalities in acidic, alkaline, and chemical wastewater, automatically stopping the drainage line to reduce environmental impact.
In semiconductor and electronic component factories, acidic and alkaline wastewater is handled, and even a small amount of leakage can have a significant environmental impact. This equipment automatically closes the gate and seals the drainage channel immediately upon detecting abnormalities in pH, chemical concentration, or oil film. Custom designs are possible to accommodate complex drainage lines such as cleanroom wastewater and process-specific wastewater. It is a highly reliable system that contributes to both environmental conservation and equipment protection. 【Features】 - Abnormal response for acidic and alkaline wastewater - Optimally designed for each chemical line - Reduces environmental risks through automatic control - Numerous implementation examples in the semiconductor industry *We also offer a variety of sluice gate lineups tailored to different applications! For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■ Type: Stainless steel or steel sluice gate ■ Opening dimensions: 100×100 to 2000×2000mm ■ Design water depth: Designed as per request ■ Operating water depth: Designed as per request ■ Water-tight method: Three-way or four-way rubber water-tight type ・Can stop water even at low water pressure using a tapered block ■ Opening and closing mechanism: Electric (rack type or spindle type) ■ Control method: Designed as per request ・Shut-off operation based on sensor signals such as pH meter linkage, oil level meter linkage, rainfall meter linkage, etc. ・Remote control operation ・On-site manual operation, etc. ■ Shut-off speed: 300mm/min (standard) 【Kanae Interesting Course】⇒ https://www.kanae.co.jp/about/gate.html ⇒ 'Technology for Preventing the Leakage of Harmful Substances' *For more details, please refer to the catalog or feel free to contact us. (Kanae: Sluice gate manufacturer)
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please refer to the catalog or feel free to contact us.
