Position detection using magnetic sensors for automobiles
SW Series Magnetic Proximity Switch Proximity Sensor Magnet Sensor Macome Laboratory MACOME
For vehicle position detection. A non-contact magnetic sensor that is resistant to dust and vibration.
In the automotive industry, accurate position detection is required to improve safety and reliability. This is especially important for use in harsh environments and for stable operation over long periods. Optical sensors are susceptible to dust, vibration, and temperature changes, which may necessitate maintenance. Our magnetic sensors provide non-contact operation, are resistant to dust and vibration, and achieve stable position detection even in harsh environments. 【Application Scenarios】 - Body position detection - Door open/close detection - Seat position detection - Gear position detection - Steering position detection 【Benefits of Implementation】 - Non-contact design ensures long life and maintenance-free operation - Resistant to dust, vibration, and temperature changes, allowing for stable detection - Individual extraction of N-pole and S-pole signals enables diverse control options - Peace of mind with a 3-year warranty
Inquire About This Product
Related Videos
basic information
【Features】 - Non-contact detection capability - Resistant to dust, fog, and vibration - Ability to distinguish between N-pole and S-pole - IP-67 and IP-68 protection structure - 3-year warranty 【Our Strengths】 - High-precision magnetic detection elements using original technology - Proven track record in a wide range of industries - Ability to accommodate custom products - Support through IoT platform - 3-year warranty
Price information
Please consult us about volume discounts.
Delivery Time
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
There are many achievements in places where replacement work is difficult due to being hard to break (high places, underground, caves, remote mountains where one does not want to go except for regular inspections). Indoor and outdoor mechanical parking systems - pallet positioning Theme park attractions - high-speed coaster passage detection, vertical drop attractions, distance measurement Outdoor parabolic antenna positioning Elevator stop position detection, passage count measurement Food machinery - door opening and closing safety devices Ship winch rotation detection Since it is not affected by dust from non-magnetic materials, it is particularly compatible with woodworking and stone processing machines! There are also many achievements in coolant resistance. We offer custom solutions from outdoor specifications to underwater specifications. Please consult us regarding waterproofing, pressure resistance, heat resistance, cold resistance, radiation resistance, case material changes, cable extensions, connectors, detection sensitivity changes, additional latch circuits, etc.
catalog（8）
Download All Catalogs
![Magnetic Proximity Switch [Case Study]](https://image.mono.ipros.com/public/catalog/image/01/808/446873/IPROS10018604191344872056.jpeg?w=120&h=170)
![Company Profile [Makome Laboratory] A4 Version](https://image.mono.ipros.com/public/catalog/image/01/211/289218/IPROS05290833112264759127.jpeg?w=120&h=170)
CAD data（14）
| Model number | overview | File |
|---|---|---|
| SW-370 | M12 IP67 Magnetic Switch NPN |
|
| SW-370 | M12 IP67 Magnetic Switch NPN |
|
| SW-272A | M9 IP68 |
|
| SW-272A | M9 IP68 |
|
| SW-270A | M9 IP67 |
|
| SW-270A | M9 IP67 |
|
| SW-252A | Square type IP68 |
|
| SW-252A | Square type IP68 |
|
| SW-250A | Square type IP67 |
|
| SW-250A | Square type IP67 |
|

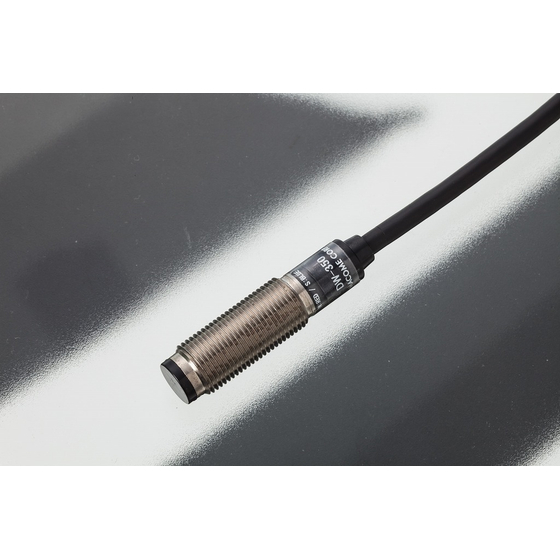

| DW-350 | N pole・S pole Individual output M12 |
|
| DW-350 | N pole・S pole Individual output M12 |
|
| DW-100 | N pole / S pole individual output rectangular type |
|
| DW-100 | N pole / S pole individual output rectangular type |
|
Company information
Utilizing our original technology of saturable coils, we offer a fundamentally simple magnetic detection element technology that provides high precision and long-term stability even under adverse conditions. We have received strong support from a wide range of industries, including unmanned transport carts, industrial equipment, labor-saving machines, material handling, machine tools, injection molding machines, civil engineering and construction robots, food machinery, industrial machinery, nuclear facilities, and ships. We also excel in sensors for motorsports such as F1 and Moto GP, tilt meters for construction machinery, and magnetic sensors used for ultra-high precision measurements in scientific fields. Some of our products are also used in applications like multi-story parking and golf cart guidance sensors. All of our products are developed and manufactured 100% in Japan, with over 80% of our product lineup being custom-made based on individual customer requests. We have many custom options available, including waterproof, explosion-proof, heat-resistant, water-resistant, and radiation-resistant specifications. If you have any issues related to sensing or measurement, please feel free to consult us. IoT Platform: Our sales and technical staff are fully committed to addressing everything from minor customizations of existing products to proposing new detection principles. You can also rely on us for assistance with improvements. Our standard products come with a reassuring 3-year warranty. Location: Ina, Nagano Prefecture. Published on Ipros Monozukuri.
