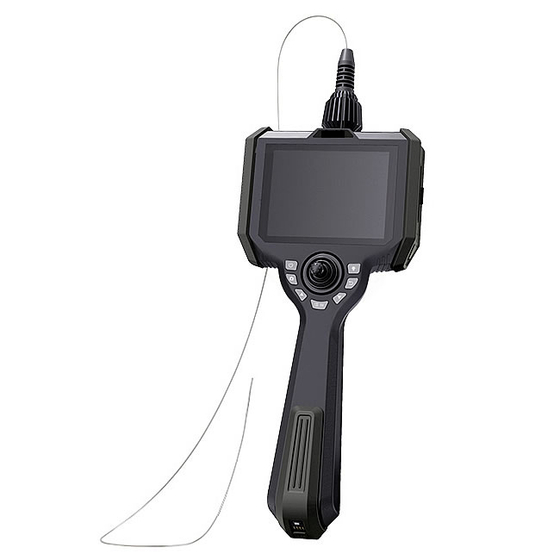

Achieves clear image quality with an ultra-fine diameter of 0.95mm to 1.2mm.
This is an industrial endoscope equipped with the latest CMOS sensor, with effective lengths of 0.5m and 1m. It dispels the image that "narrow diameters result in lower image quality" with 160,000 pixels. Compared to the manufacturer's conventional narrow-diameter endoscopes, it produces less noise and displays images clearly.
Inquire About This Product
basic information
■Specifications Model Number: M926RIFBE-09505SR M926RIFBE-09510SR Diameter 0.95: 0.5m 1m Diameter 1.2: - - Monitor: 5 inches Monitor Resolution: 1024×768 Imaging Sensor: 1/31 inch Camera Resolution: 160,000 pixels Tip Outer Diameter: 0.95mm/1.2mm Effective Length (approx.): 0.5/1.0m Camera Movement Range (approx.): No tip movement Focal Length (approx.): 3–30mm Field of View (approx.): 80°/100° Light Source: Fiber optic ×1 Dimming: OFF + 8 levels Still Image Size: JPG: 400×400 Video Size: MP4: 400×400 (30fps) Storage Media: MicroSD card (up to 64GB) Interface: HDMI output (1280×720×60Hz) Battery: 18650 3.7V/2200mAh ×2 Usage Time (approx.): 2 hours *average Charging Time (approx.): 5 hours *average Dustproof/Waterproof: No dustproof/waterproof performance Operating Temperature: Insertion part: -20℃ to 70℃ Monitor: -10℃ to 50℃ Weight (approx.): 790g to 810g Dimensions (approx.) *1: 350×158×60mm
Price range
Delivery Time
Applications/Examples of results
■Usage Examples It can be utilized in a wide range of fields such as the automotive, aviation, railway, and shipping industries, as well as in manufacturing and construction.
