In addition to 3D appearance inspection after SMT, a new model that can also be used after DIP!

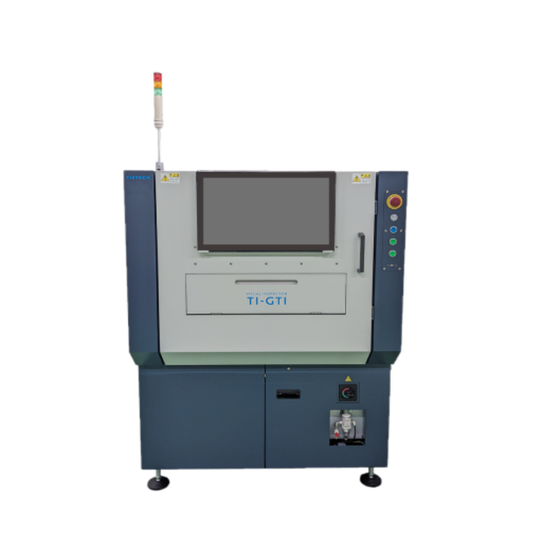

The "TI-GTI" is a 3D board appearance inspection device that not only plays a role in preventing the outflow of defective products as an inspection device but also numerically manages trends such as component mounting positions, making analysis easy. It is equipped with a 4-direction phase shift 3D lighting system that can measure a height range of -5 to +20mm with a resolution of 1μm (variation 3σ ±15μm), capturing minute changes in height. Additionally, the vertical camera is equipped with a 125mm diameter telecentric lens that has been reinforced for seismic resistance. It ensures an industry-leading field of view of 67.5mm x 67.5mm, efficiently capturing a wide area. 【Features】 ■ Hardware - Rapid and accurate reproduction of the object's shape - Efficient acquisition of a wide range of 3D and 2D images - Automatic backup mechanism *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Other Features】 ■Software - Leave difficult solder fillet inspections to us - Reduce program creation time to half compared to our previous models - Significantly reduce the workload associated with false alarm measures ■Various Solutions - Character inspection solution - Foreign object inspection solution - Flow solder solution *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
