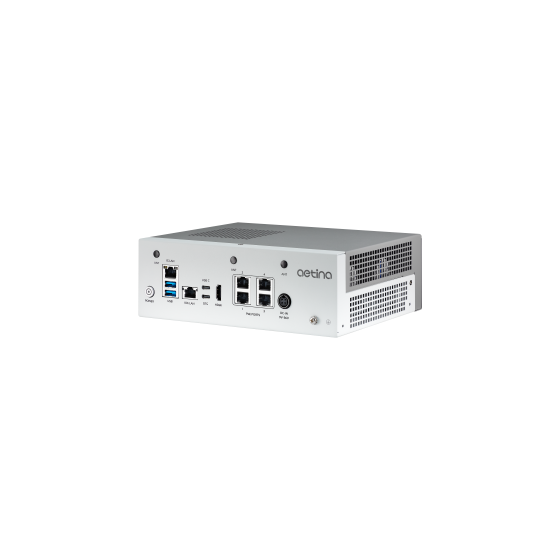

DeviceEdge Jetson Series
● The NVIDIA Jetson AGX Orin module delivers up to 275 TOPS, which is eight times that of the NVIDIA Jetson AGX Xavier 32 GB module. The NVIDIA Jetson AGX Orin 64 GB module, consisting of 2048 NVIDIA CUDA cores and 64 Tensor cores, enables server-class AI inference at the edge with low latency. ● It is a highly expandable system with built-in LTE/5G compatible M.2 B-Key x 1, Wifi/BT compatible M.2 E-Key x 1, and storage compatible M.2 M-Key x 1. The onboard network supports 2 or 4 x PSE ports for 2 or 4 x POE cameras. The 1 x 10 GbE port achieves data speeds of up to 100 billion bits per second, which is ten times that of the conventional GbE standard. ● To accommodate various embedded applications, especially in harsh environments such as smart factories, smart cities, and smart transportation, it supports a wide operating temperature range from -25°C to 70°C and a broad input power range from 9 to 36 VDC.
Inquire About This Product
basic information
• Supports NVIDIA Jetson AGX Orin 32 GB/64 GB modules • Up to 275 TOPS of AI performance • Wide input power range of 9 to 36 VDC • 1 x B-Key/1 x E-Key/1 x M-Key slot • GbE x 1, 10 GbE x 1, and 2/4 x IEEE 802.3af GbE PSE ports • Support for Innodisk out-of-band remote management module • Operating temperature range -25°C to +70°C
Price range
Delivery Time
Applications/Examples of results
The NVIDIA Jetson series of products has been known as the smallest embedded systems, but the new generation "NVIDIA Jetson AGX Xavier" maintains the advantage of system miniaturization while improving edge computing performance by about 20 times compared to the previous generation, and achieving over 10 times improvement in energy efficiency. With unprecedented processing power, remarkable energy efficiency, and a compact size that is easy to embed, Jetson is set to create a new wave in AIoT applications.
catalog（2）
Download All Catalogs
Company information
Aetina Japan Co., Ltd. is a company that leverages its expertise in GPU accelerators, edge computing, and system integration to provide an environment where businesses can confidently engage in innovation. We smoothly propose industrial edge AI solutions tailored to diverse needs and support as a reliable partner at various stages from development to deployment. Our one-stop service streamlines the implementation of edge AI applications and promotes digital transformation that transcends our customers' imagination and traditional boundaries.
