Micro-nano bubble generation device YJ nozzle for pre-treatment of plating
YJ-6、YJ-9、YJ-15、YJ-21、YJ-32、YJ-40、YJ-52
Increase efficiency of pre-treatment for plating with micro-nanobubbles!
In the pre-treatment process of the plating industry, the removal of oil and foreign substances is a crucial factor that affects quality. In particular, the cleanliness of the metal surface significantly impacts the adhesion and finish of the plating. Inadequate pre-treatment can lead to the occurrence of defective products and delays in the process. The YJ nozzle addresses these challenges with the power of micro and nano bubbles. 【Application Scenarios】 - Cleaning of metal parts before plating - Removal of oil and foreign substances - Streamlining of wastewater treatment processes 【Benefits of Implementation】 - Improved quality due to enhanced cleaning power - Increased maintainability - Reduction in wastewater treatment costs
Inquire About This Product
Related Videos
basic information
【Features】 - Generates microbubbles and nanobubbles simply by connecting to a general-purpose pump - Straight structure minimizes clogging - Usable in a wide range of environments, including wastewater and sewage - Low pressure loss with high efficiency and large flow capacity - High energy efficiency in industrial processes and general wastewater treatment 【Our Strengths】 As a specialized trading company for environmental equipment, we propose optimal products tailored to our customers' needs.
Price range
Delivery Time
※The micro-nano bubble generation device YJ nozzle has varying delivery times depending on the product model, so please feel free to contact Enviro Vision Co., Ltd. for inquiries.
Applications/Examples of results
- The microbubble and nanobubble generation device "YJ Nozzle" provides high-efficiency aeration in adjustment tanks and aeration tanks for wastewater treatment. - The microbubble and nanobubble generation device "YJ Nozzle" is used for odor reduction in lake purification, dam lake purification, and underground pits. - The microbubble and nanobubble generation device "YJ Nozzle" supports sterilization treatment of ballast water using ozone microbubbles, as well as COD and BOD reduction and neutralization treatment using carbon dioxide. - The microbubble and nanobubble generation device "YJ Nozzle" can be used as a line mixer for gas dissolution processes (also compatible with sanitary applications). - The microbubble and nanobubble generation device "YJ Nozzle" mixes steam microbubbles into water and is applied in steam mixers. - The microbubble and nanobubble generation device "YJ Nozzle" is currently utilized to promote the growth and maintain the freshness of seafood and agricultural products. - The microbubble and nanobubble generation device "YJ Nozzle" is used in mixing nozzles for high-concentration oxygen water, ozone water, and high-speed oxidation reactions. - The microbubble and nanobubble generation device "YJ Nozzle" can be applied to various cleaning purposes (vegetable washing, washing machines, parts cleaning, etc.). - Microbubbles (various high-efficiency ozone sterilization) are also used in water purification plants and sewage treatment plants. For more details about the micro-nanobubble generation device YJ Nozzle, please contact us.
Line up（14）
| Model number | overview |
|---|---|

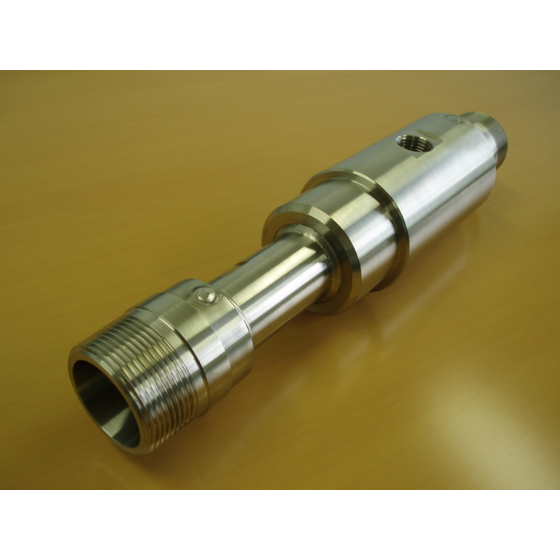

| YJ-6-inline | Required flow rate: 30L/min or more, Connection: 20A/both threaded, Material: SUS304 |
| YJ-6-inline-PVDF | Required flow rate: 30L/min or more, Connection: 20A/both threaded, Material: PVDF |
| YJ-9-inline | Required flow rate: 80L/min or more, Connection: 25A/both threaded, Material: SUS304 |
| YJ-9-inline-PVDF | Required flow rate: 80L/min or more, Connection: 25A/both threads, Material: PVDF |
| YJ-15 | Required flow rate: 165L/min or more, Connection: 40A/one thread, Material: SUS304 |
| YJ-15-inline | Required flow rate: above 165L/min, Connection: 40A/both threaded, Material: SUS304 |
| YJ-21 | Required flow rate: 330L/min or more, Connection: 50A/one thread, Material: SUS304 |
| YJ-21-inline | Required flow rate: 330L/min or more, Connection: 50A/both threaded, Material: SUS304 |
| YJ-32 | Required flow rate: 750L/min or more, Connection: 65A/one screw, Material: SUS304 |
| YJ-32-inline | Required flow rate: 750L/min or more, Connection: 65A/both threaded, Material: SUS304 |
| YJ-40 | Required flow rate: 1,150L/min or more, Connection: 80A/one thread, Material: SUS304 |
| YJ-40-inline | Required flow rate: 1,150 L/min or more, Connection: 80A/both threaded, Material: SUS304 |
| YJ-52-F | Required flow rate: 2,000 L/min or more, Connection: single flange, Material: SUS304 |
| YJ-52-inlineF | Required flow rate: 2,000 L/min or more, Connection: Both flanges, Material: SUS304 |
catalog（1）
Download All Catalogs
Company information
We are a trading company that meets environmental needs with excellent products such as the micro-nano bubble (fine bubble) generation device "YJ Nozzle," the wastewater treatment system "Ozack," and the parts cleaning system "Bio Circle," which allows for the reuse of cleaning liquids. We cover a wide range of environmentally friendly and original products, including micro-nano bubbles, aeration devices, measuring instruments, and anti-corrosion coatings, and we actively propose environmental technologies and products as a specialized trading company for environmental equipment.
