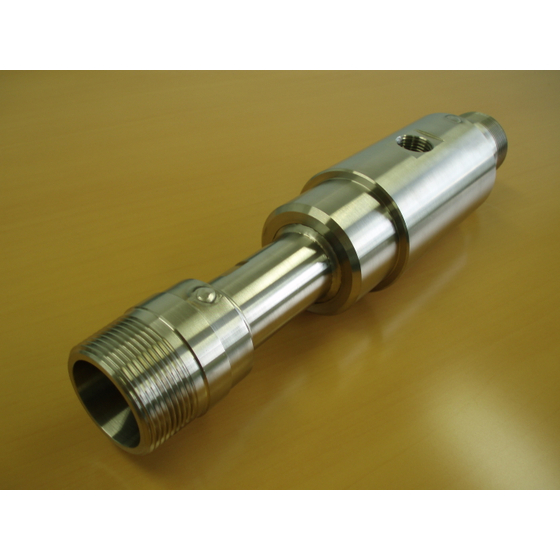

Micro-Nano Bubble Generator for Fiber Dyeing YJ Nozzle
YJ-6、YJ-9、YJ-15、YJ-21、YJ-32、YJ-40、YJ-52
Improving dye wastewater with micro-nanobubbles!
In the textile dyeing industry, wastewater treatment is an important issue. In particular, the wastewater discharged from the dyeing process causes water quality pollution and poses a significant environmental burden. Proper wastewater treatment is essential not only for environmental conservation but also for fulfilling corporate social responsibility. The YJ nozzle improves the treatment efficiency of dyeing wastewater and reduces environmental impact through micro and nano bubble technology. 【Usage Scenarios】 - Wastewater treatment from the dyeing process - Performance enhancement of wastewater treatment facilities - Water quality improvement 【Benefits of Implementation】 - Reduction in wastewater treatment costs - Decrease in environmental impact - Improvement of corporate image
Inquire About This Product
Related Videos
basic information
【Features】 - Operates with atmospheric (gas) suction like an ejector simply by being attached to a general-purpose pump - Large diameter straight pipe structure that is resistant to clogging - Usable in wastewater, sewage, rivers, oceans, lakes, and more - Exceptional maintenance characteristics - High efficiency and large flow capacity with low pressure loss 【Our Strengths】 SPURT is fully committed to environmental business. We support our customers in solving their challenges with micro-nano bubble technology and wastewater treatment technology.
Price range
Delivery Time
※The micro-nano bubble generation device YJ nozzle has varying delivery times depending on the product model, so please feel free to contact Enviro Vision Co., Ltd. for inquiries.
Applications/Examples of results
- The microbubble and nanobubble generation device "YJ Nozzle" provides high-efficiency aeration in adjustment tanks and aeration tanks for wastewater treatment. - The microbubble and nanobubble generation device "YJ Nozzle" reduces odors in lake purification, dam lake purification, and underground pits. - The microbubble and nanobubble generation device "YJ Nozzle" is suitable for sterilization treatment of ballast water using ozone microbubbles, as well as for reducing COD and BOD, and for neutralization treatment using carbon dioxide. - The microbubble and nanobubble generation device "YJ Nozzle" can be used as a line mixer for gas dissolution processes (also compatible with sanitary applications). - The microbubble and nanobubble generation device "YJ Nozzle" mixes steam microbubbles into water and is applied in steam mixers. - The microbubble and nanobubble generation device "YJ Nozzle" is currently utilized to promote the growth and maintain the freshness of seafood and agricultural products. - The microbubble and nanobubble generation device "YJ Nozzle" is used in mixing nozzles for high-concentration oxygen water, ozone water, and high-speed oxidation reactions. - The microbubble and nanobubble generation device "YJ Nozzle" can be applied to various cleaning purposes (vegetable washing, washing machines, parts cleaning, etc.). - Microbubbles (various high-efficiency ozone sterilization) are also used in water purification plants and sewage treatment plants. For more details about the micro-nanobubble generation device YJ Nozzle, please contact us.
Line up（14）
| Model number | overview |
|---|---|
| YJ-6-inline | Required flow rate: 30L/min or more, Connection: 20A/both threaded, Material: SUS304 |
| YJ-6-inline-PVDF | Required flow rate: 30L/min or more, Connection: 20A/both threaded, Material: PVDF |
| YJ-9-inline | Required flow rate: 80L/min or more, Connection: 25A/both threaded, Material: SUS304 |
| YJ-9-inline-PVDF | Required flow rate: 80L/min or more, Connection: 25A/both threaded, Material: PVDF |
| YJ-15 | Required flow rate: 165L/min or more, Connection: 40A/one thread, Material: SUS304 |
| YJ-15-inline | Required flow rate: 165L/min or more, Connection: 40A/both threaded, Material: SUS304 |
| YJ-21 | Required flow rate: 330L/min or more, Connection: 50A/one thread, Material: SUS304 |
| YJ-21-inline | Required flow rate: 330L/min or more, Connection: 50A/both threaded, Material: SUS304 |
| YJ-32 | Required flow rate: 750L/min or more, Connection: 65A/one thread, Material: SUS304 |
| YJ-32-inline | Required flow rate: 750L/min or more, Connection: 65A/both threaded, Material: SUS304 |
| YJ-40 | Required flow rate: 1,150 L/min or more, Connection: 80A/one thread, Material: SUS304 |
| YJ-40-inline | Required flow rate: 1,150 L/min or more, Connection: 80A/both threaded, Material: SUS304 |
| YJ-52-F | Required flow rate: 2,000L/min or more, Connection: single flange, Material: SUS304 |
| YJ-52-inlineF | Required flow rate: 2,000 L/min or more, Connection: both flanges, Material: SUS304 |
catalog（1）
Download All Catalogs
Company information
We are a trading company that meets environmental needs with excellent products such as the micro-nano bubble (fine bubble) generation device "YJ Nozzle," the wastewater treatment system "Ozack," and the parts cleaning system "Bio Circle," which allows for the reuse of cleaning liquids. We cover a wide range of environmentally friendly and original products, including micro-nano bubbles, aeration devices, measuring instruments, and anti-corrosion coatings, and we actively propose environmental technologies and products as a specialized trading company for environmental equipment.
