Power cords chosen by professionals for over 40 years.

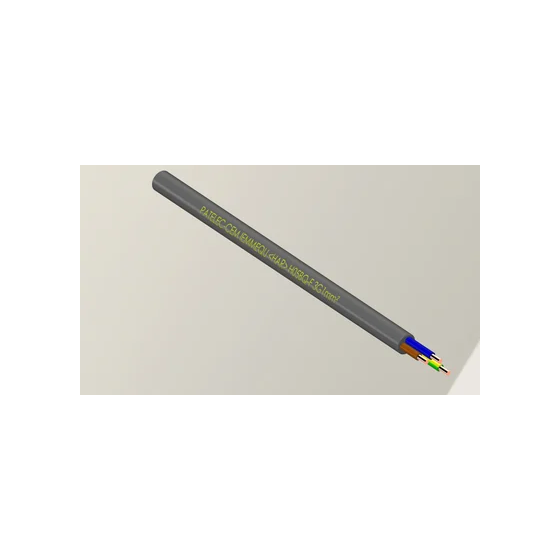

The 05BQH8-F is a flexible cable designed for light load applications with excellent heat resistance, suitable for use in general households, kitchens, and office environments. It is designed for powering electrical devices used on a daily basis and is ideal for applications with low mechanical stress. It is suitable for use with general household appliances and portable devices such as vacuum cleaners, cooking appliances, soldering irons, toasters, handheld electric tools, and inspection lamps. It can also accommodate short-term and temporary outdoor use. This cable supports a maximum conductor operating temperature of 90°C, combining heat resistance and reliability. It is recommended to ensure that the cable surface temperature does not exceed 50°C during use, and direct contact with skin should be avoided unless calculations indicate no issues.
Inquire About This Product
basic information
The 05BQH8-F is a flexible cable designed for light load applications, combining heat resistance and flexibility. It is suitable for powering various electrical devices used in general households, kitchens, and office environments, demonstrating stable performance under conditions of low mechanical stress. It is available in configurations of 2-core, 3-core (with earth), 4-core, and 5-core, with conductor cross-sectional areas of 1.0mm², 1.5mm², and 2.5mm², allowing for flexible selection based on application needs. The cable outer diameter ranges from approximately 6.9mm to 15.3mm, ensuring moderate compactness and ease of handling. The insulation and sheath have an average thickness of 0.8–0.9mm (insulation) / 0.9–1.3mm (sheath), providing an excellent balance of flexibility and mechanical protection. The maximum wire diameter is between 0.21mm and 0.26mm, and the supple stranded structure enhances workability. The electrical resistance ranges from 7.98 to 19.5Ω/km, offering stable electrical characteristics. Additionally, the approximate weight is between 68 and 247kg/km, making it relatively lightweight and designed for ease of installation, handling, and transportation.
Price range
Delivery Time
Applications/Examples of results
Power tools, submersible pumps, pressure washers, coffee makers, air conditioners, etc.
