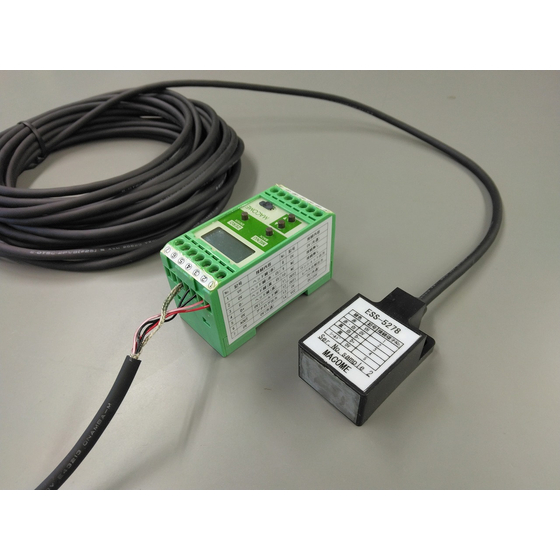

Welding Position Detection Sensor for Bridges
ES-5278 Makome Laboratory MACOME
Non-destructively detect the welding positions of bridges to improve safety.
In the bridge construction industry, quality control of welding is crucial to ensure the safety of structures. Misalignment or defects in welds, which are often overlooked by visual inspections or conventional sensors, can lead to a decrease in the durability of structures. Our welding position detection sensor utilizes eddy currents to accurately detect welding positions even beneath paint or plating. This enables efficient inspections to enhance the safety of bridges. *If you lend us your workpiece, we will investigate whether detection is possible free of charge. Please feel free to contact us. [Application Scenarios] - Inspection of welding joints in bridges - Confirmation of welding positions after painting or plating - Quality control through non-destructive testing [Benefits of Implementation] - Early detection of welding defects - Reduction of inspection time - Improvement of structural safety
Inquire About This Product
Related Videos
basic information
【Features】 - Non-destructive testing using eddy currents - Detectable even under paint and plating - High-precision weld position detection - Signal processing and output via controller - Customizable options available 【Our Strengths】 Based on magnetic sensor technology, we provide products tailored to our customers' needs. With years of experience and technical expertise, we support the resolution of diverse challenges. We also offer a 3-year product warranty.
Price range
Delivery Time
Applications/Examples of results
Detection of the hole drilling section of the dynamo stator (position detection to avoid welding locations) Welding detection of muffler steel pipes (to ensure that the weld does not overlap with the bending position) Welding detection of rotors that are wound Confirmation of welds during fire extinguisher manufacturing Welding detection of non-magnetic stainless steel pipes and steel pipes Welding detection of drums, pails, and one-gallon cans Welding detection of steel cans such as canned food and canned coffee Edge detection of steel plates, detecting the boundary between plates of leaf springs Detection of welding points on SUS belts Detection of joints in railway tracks Detection of wire breakage in escalator hand belts Non-destructive testing It can also be applied to edge and joint detection.
