Magnetic sensor for security systems

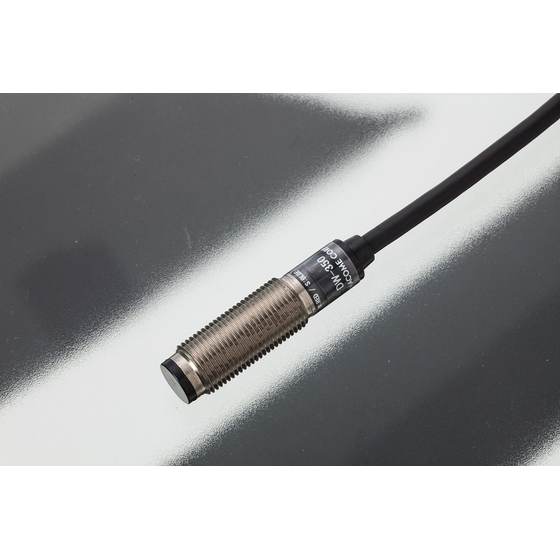

DW-350 Magnetic Sensor Magnetic Switch Macome Research Institute MACOME
Waterproof magnetic sensor detects intrusions. Individual N-pole and S-pole outputs reduce false detections.
In the security industry, the reliability of intrusion detection is crucial. It is required to withstand outdoor and harsh environments while reducing false alarms. Our magnetic sensors utilize magnetism, making them resistant to dirt and suitable for outdoor use. They are equipped with separate outputs for the North and South poles, which helps reduce the risk of false detection. 【Usage Scenarios】 - Detection of window and door openings - Detection of abnormalities in shutters and gates - Construction of security systems 【Benefits of Implementation】 - Achieves accurate intrusion detection with high reliability - Stable operation even in outdoor and harsh environments - Reduction of false detection through individual outputs for North and South poles - Supports cable extension (custom orders available)
Inquire About This Product
basic information
【Features】 - Waterproof structure (compliant with IP67) - Individual output for N pole and S pole - M12 type - NPN open collector output (PNP type also available) - Utilizes magnetism, resistant to dirt 【Our Strengths】 Using our original technology of saturable coils, we provide a fundamentally simple magnetic detection element technology that maintains high precision and stability even under harsh conditions for an extended period. All products are developed and manufactured 100% in Japan, with over 80% of our product lineup being custom-made based on individual customer requests. If you have any issues related to sensing or measurement, please feel free to consult us. Our standard products come with a reassuring 3-year warranty.
Price information
Please consult us about volume discounts.
Price range
P1
Delivery Time
P3
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Positioning of pallets in multi-story parking lots Proximity sensors for ships Numerous achievements in automated warehouses, cold storage, etc.
catalog（4）
Download All Catalogs
CAD data（14）
| Model number | overview | File |
|---|---|---|
| DW-100 | N pole / S pole individual output rectangular type |
|
| DW-100 | N pole / S pole individual output rectangular type |
|
| DW-350 | N pole・S pole Individual output M12 |
|
| DW-350 | N pole・S pole Individual output M12 |
|
| SW-370 | M12 IP67 Magnetic Switch NPN |
|
| SW-370 | M12 IP67 Magnetic Switch NPN |
|
| SW-270A | M9 IP67 |
|
| SW-270A | M9 IP67 |
|
| SW-272A | M9 IP68 |
|
| SW-272A | M9 IP68 |
|
| SW-250A | Square type IP67 |
|
| SW-250A | Square type IP67 |
|
| SW-252A | Square type IP68 |
|
| SW-252A | Square type IP68 |
|
