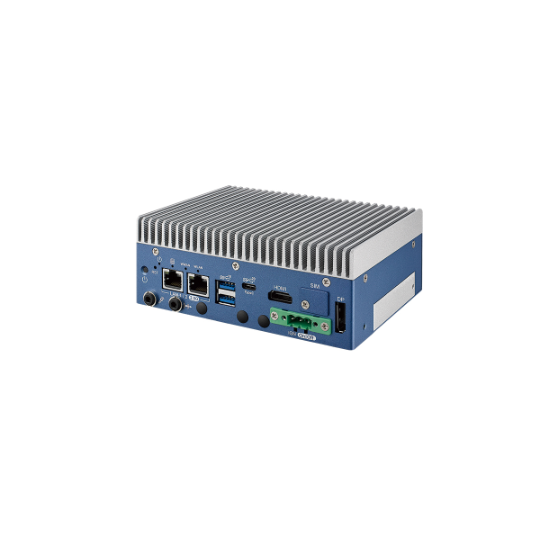

Vecow, railway and automotive applications, compatible with 14th generation Core Ultra 7 165U/Ultra 5 135U CPU, extended temperature support.
【Vecow SPC-9000 Features】 ■ Width 150.4 × Height 44.2 × Depth 106.2 mm ■ 14th Generation Intel Core Ultra 7 165U / Ultra 5 135U CPU ■ 11 TOPS performance with Intel AI Boost ■ 1 DDR5 5600MHz SO-DIMM (up to 48GB) ■ 4K resolution support, 2 DisplayPort, 1 HDMI output ■ 2 2.5GbE, 1 USB 3.2 Gen 2x2 Type-C, 2 USB 3.2 Gen 2 Type-A, 2 COM RS-232/422/485, 1 Nano SIM Card ■ Extended temperature range -40 to 60℃ ■ Wide DC 9 to 55V input (3-pin terminal block: On, Off, IGN) ■ Control via ignition key (16 modes) ■ Railway standard EN50155 certified ■ 1 M.2 Key B Socket (3042/3052, PCIe x2/USB 3, default/USB2), 1 M.2 Key E Socket (2230, PCIe x1/USB2), 1 SUMIT B
Inquire About This Product
basic information
Specifications ■CPU: Intel Core Ultra 7 165U Processor (12 Cores) / Ultra 5 135U Processor (12 Cores) ■NPU: Intel AI Boost ■Memory: 1 DDR5 5600MHz SO-DIMM (up to 48GB) ■Expansion Slots: 1 M.2 Key B Socket (3042/3052, PCIe x2/USB 3, default/USB2), 1 M.2 Key E Socket (2230, PCIe x1/USB2), 1 SUMIT B ■Storage: 1 SATA III (6Gbps), 1 M.2 Key M Socket, 1 M.2 Key B Socket ■I/O Connectors: 2 2.5GbE, 1 USB 3.2 Gen 2x2 Type-C, 2 USB 3.2 Gen 2 Type-A, 2 COM RS-232/422/485, 1 Nano SIM Card, 2 DisplayPort, 1 HDMI ■Operating Temperature: -40°C to 60°C ■Certifications: CE, FCC, ICES, EN50155, EN50121-3-2
Price range
Delivery Time
※It may vary depending on the quantity and timing, so please feel free to contact us.
Applications/Examples of results
For machine, factory, and building automation/monitoring systems.
Line up（6）
| Model number | overview |
|---|---|
| SPC-9000-165U | Core Ultra 7 165U, Heat Spreader |
| SPC-9000-135U | Core Ultra 5 135U, Heat Spreader |
| SPC-9100-165U | Core Ultra 7 165U, Heat Sink |
| SPC-9100-135U | Core Ultra 5 135U, Heat Sink |
| SPC-9200-165U | Core Ultra 7 165U, Fan Sink |
| SPC-9200-135U | Core Ultra 5 135U, Fan Sink |
