Fully automatic measurement of particle hardness!

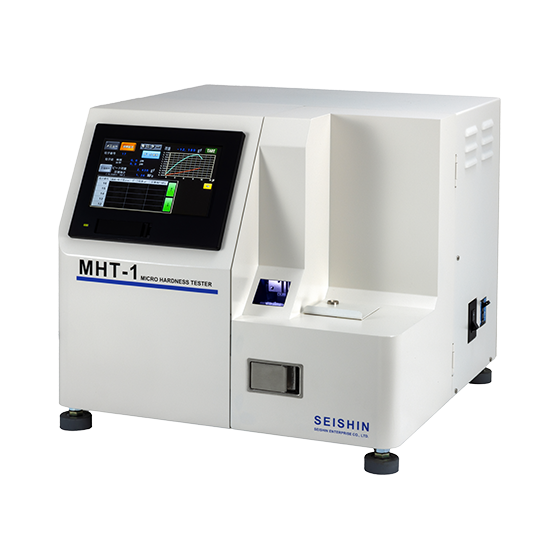

The Micro Hardness Tester MHT-1 is an automatic compression testing device designed for fine particles ranging from 40 to 400μm, achieved by changing the measurement stage. It measures the peak load and particle size when a load is applied with a punch to crush the particles, determining the crushing strength. The process from compression to destruction is recorded with image data and load-displacement curves. By selecting any particle from the measurement results, the destruction process can be confirmed with the load-displacement curve and continuous images. Thanks to our unique technology, each particle is dispersed and automatically sampled. The measurement is automated, repeating the compression test and cleaning simply by loading the sample. *Depending on specifications, the target particle size may be 40 to 120μm or 50 to 400μm. For measuring particles ranging from 200 to 1500μm, the Better Hardness Tester BHT-1000 (fully automatic powder and granular compression testing device) is available.
Inquire About This Product
basic information
Measurement Method: Constant Load Method Measurement Items: Height Particle Diameter, Peak Load, Displacement, Crush Strength, Breaking Strength, Deformation Strength Target Particle Diameter: 40–400μm (1mm for manual measurement, stage change required) Descending Speed: Selectable from 1.0–10μm/sec Number of Measured Particles: Up to 500 particles per sample Load Cell Test Force: 1N (minimum display 0.01mN) (can be changed to 5N, 10N, 20N as an option) Camera: CMOS USB Camera Selectable from "480×270" 130,000 pixels, "640×360" 230,000 pixels, "960×540" 520,000 pixels, "1920×1080" 2,070,000 pixels Main Unit Dimensions: W450×D460×H400mm (including protrusions) Main Unit Weight: Approximately 25kg Utility: AC100V 50/60Hz 2A Others: Indenter φ0.45mm diameter straight (tip surface treatment) LED light illumination, dust cover, calibration weights
Price range
Delivery Time
Applications/Examples of results
Ceramics, pharmaceuticals, food
Detailed information
-
Particles are fed into the hopper for sample input. After that, simply issuing a measurement command from the software will automatically complete the sampling and measurement process.
-
The samples loaded into the hopper are dispersed onto the stage. Equipped with our proprietary automatic sampling mechanism, it is possible to place even fine particle samples onto the measurement stage one by one.
-
Using our particle shape image analysis software technology, we distinguish whether the sampled particles are primary particles or agglomerated particles. By excluding agglomerated particles from the measurements and accurately measuring primary particles, we enhance the reliability of the data.
-
The recognized measurement particles are crushed in order, and their strength is measured. A load cell is built into the bottom, so it detects the load when the particles are pressed down with a measuring indenter from above.
-
After the compression test, the load cell and the particle installation stage are automatically cleaned with a cleaning brush, and the sampling process is repeated automatically.
