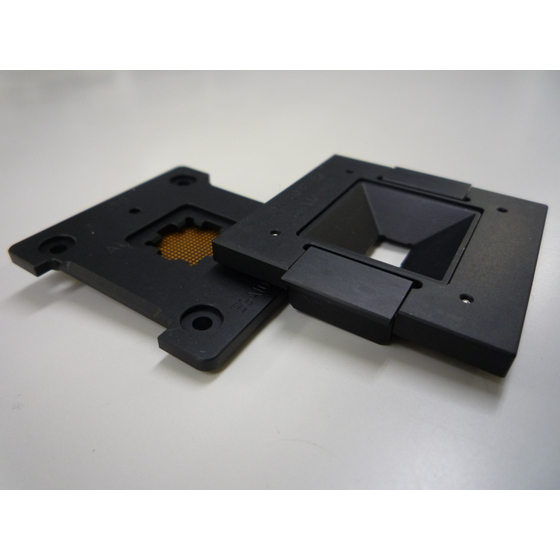

High-frequency measurement sockets supporting signal quality in the 5G/6G era.
In the telecommunications industry, with the spread of 5G/6G, there is a demand for high-speed and large-capacity communication, making the maintenance of signal quality crucial. Accurate measurements are essential in testing high-frequency devices, and even slight signal degradation is unacceptable. The PCR socket addresses challenges in high-frequency measurements through free design of electrode diameter and short-distance connections, enabling stable measurements. It is also capable of millimeter-wave measurements. 【Usage Scenarios】 - Characterization evaluation of 5G/6G compatible devices - Quality inspection of devices for base stations - Signal integrity measurement for high-speed transmission lines 【Benefits of Implementation】 - Improved product quality through accurate measurement of high-frequency characteristics - Reduced development time by achieving a stable measurement environment - Compatibility with a wide frequency range, including the millimeter-wave band
Inquire About This Product
basic information
【Features】 - Compatible Pitch: 1.27 to 0.25 mm - Compatible grid number: 100 x 100 (approx.) - Compatible size: 100 x 100 mm (electrode area/approx.) - Operating temperature range: Standard type/-40 to 125℃, Wide range type/-55 to 150℃ 【Our Strengths】 JMT Corporation specializes in pressure conductive sheets for PCR (rubber sheets) and semiconductor package testing, as well as fixtures and pressure conductive sheets for printed circuit board inspection. We integrate our long-established technologies in plating, photolithography, and laser technology with PCR technology to provide high-performance test contactors. Please feel free to contact us with any inquiries.
Price range
Delivery Time
※Prices will be set based on product specifications and order quantities. Please feel free to contact us.
Applications/Examples of results
- Final selection test (handler) - System level test / SLT - High-frequency verification evaluation - Design verification evaluation - Reliability evaluation - Debug verification - Inter-board connection (short-distance connection connector, solder replacement) / BtoB - Burn-in test
Company information
JMT Corporation is a company that handles PCR (rubber sheets), pressure conductive sheets for semiconductor package inspection, and jigs & pressure conductive sheets for printed circuit board inspection. We will provide high-performance test contactors by integrating our long-cultivated plating technology, photolithography technology, laser technology, and PCR technology. Please feel free to contact us if you have any inquiries.
