Powerful 'Large' internal scanning of aluminum products and resin products.

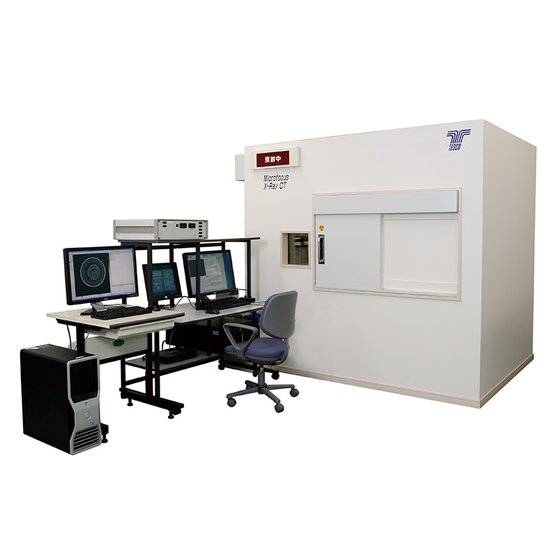

High-power micro-focus X-ray CT system 'TXS-CTN230/300micro'
An innovative high-output micro-focus C-ray CT device that reflects the future.
Observe internal product information with high output and greater accuracy - Equipped with an open-type 230kV or 300kV high-output micro-focus X-ray source - Provides higher resolution images with a high-definition large 17-inch flat panel detector - Achieves a compact design while maintaining a field of view of 600mm wide × 600mm high (optional) - Adopts a high-voltage power supply integrated X-ray source, eliminating the need for high-voltage cables and cable maintenance - Demonstrates power in internal scanning of copper parts, iron parts, aluminum products, and resin products *For copper and iron parts, 300kV is recommended.
Inquire About This Product
basic information
X-ray source: Maximum tube voltage (TXS-CTN230micro) 230kV ・ (TXS-CTN300micro) 300kV Focal spot size 4μm Maximum output 200W Detector: Flat panel detector 17 inches (16bit A/D) 139μm Stage size: Φ450mm Stage stroke: H 600mm Stage load capacity: 20Kg Scan type: Center / Offset / Half (Cone beam) Image analysis software: VG studio MAX (optional) Irradiation box (dimensions and leakage dose): W 2430 × D 1480 × H 2150mm ・ 6.5 tons ・ below 2.5μSv/h
Price range
Delivery Time
Applications/Examples of results
[Subjects for Photography] Examples: Copper parts, iron parts, aluminum products, resin products, etc.
