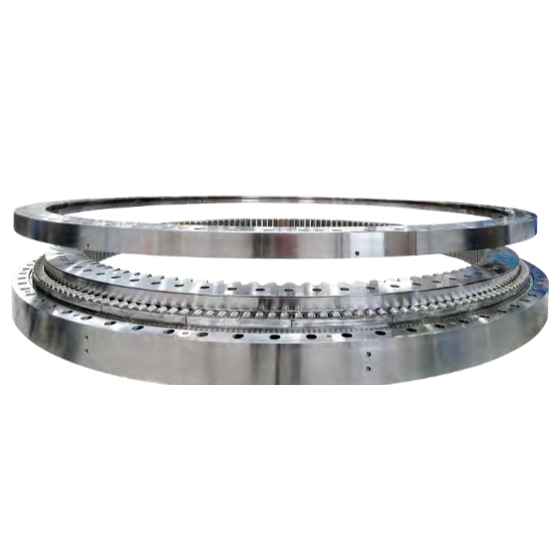

Introducing large-diameter bearings manufactured for harbor floating cranes!
Applications of the slewing ring include cranes and aerial work platforms. In the case of large-diameter bearings manufactured for floating cranes at Indonesian ports, a three-row roller type slewing ring with high-frequency hardened teeth on the outer diameter of approximately 5000mm was completed from manufacturing to shipping in just 8 weeks. Additionally, it is used in railway rotating cranes and vehicles equipped with aerial work platforms. 【Specifications】 ■ Outer diameter: 5000mm ■ Roller diameter: 50mm ■ Maximum tilt moment: 65000kNm ■ Module: 24mm ■ Weight: 8500kg *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
