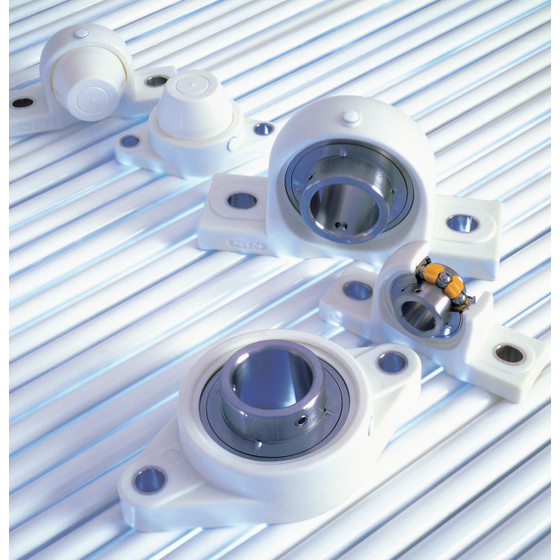

Combining stainless steel ball bearings with a resin bearing box to support a clean environment!
We would like to introduce the "Bearing Unit Plastic Series" that we handle. Compared to conventional NTN cast iron units, it has excellent corrosion resistance, and the bearing box itself is non-magnetic and does not rust, making it suitable for a wide range of applications. The use of a resin bearing box has achieved a weight reduction of 30-60%. The ball bearings use NTN's unique thermosetting grease (P-03) encapsulated in poly-lube bearings, which minimizes lubricant leakage and prevents contamination of the surrounding environment. 【Features】 - Excellent corrosion resistance - Maintenance of a clean environment - Low bearing torque - Lightweight - Water and chemical resistance *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Permissible Temperature Range and Permissible Rotational Speed】 ■Permissible Temperature Range: -20 to 80 degrees C (Continuous use temperature is recommended to be below 60 degrees C) ■Permissible dn value: 12 x 10^4 [dn = Bearing inner diameter dimension d (mm) x Operating rotational speed n (min^-1)] *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Food machinery ■ Packaging machinery ■ Textile machinery ■ Chemical machinery *For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
We strive to build trust and provide proposal-based services by understanding the designer's intentions in each individual part and offering new products and technologies.
