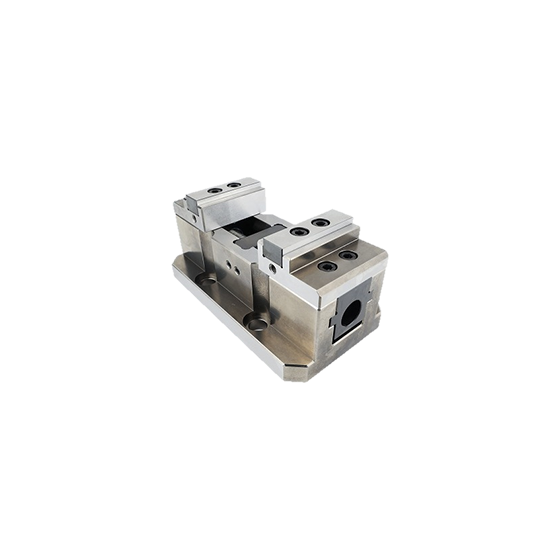

Achieving a lower height and weight reduction through the elimination of the intermediate plate, this machine vise maximizes the machining area and improves workability.
Low-floor design with a work attachment surface height of 75mm Improved workability due to lightweight design Repeatability accuracy ±10µm
Inquire About This Product
basic information
Clamp Type: Centering Repeat Positioning Accuracy: ±0.01mm Maximum Tightening Force: 16kN Jaw Width: 60mm Workpiece Mounting Surface Height: 75mm Jaw Opening Range: 12 to 122mm
Price range
Delivery Time
Applications/Examples of results
The 5-axis machining vise eliminates the need for an intermediate plate by allowing installation that matches the used pallet, thereby reducing the height of the workpiece mounting surface. This maximizes the machining area of the 5-axis machining center and enables the processing of a variety of workpieces.
