● Up to 5-point relay and 4 analog outputs
Relay contacts are available for a maximum of 5 points. The analog output AO can support a maximum of 4 points at 0-20mA and 4-20mA.
Inquire About This Product
basic information
■Common Specifications Display Screen: Graphic LCD, backlit 128 x 64 pixels monochrome Digital Input: Two independent galvanically isolated inputs (configurable for hold & cleaning functions) Status: 5–24 Vdc, low level or high level active Digital Communication: RS485 serial port (for remote monitoring and control) Analog Output: 0-22mA (configurable for 0-20mA or 4-20mA) Analog Output Accuracy: ±0.2% f.s. Contacts: Up to 5 relays (individually configurable for process variable, hold & cleaning functions) Electromechanical Relay SPDT / SPST contact output: 5A-250Vac, 5A-30Vdc [resistive load] Fuse Protection: 5A, 250V slow-blow fuse Alarm Relay: Electromechanical Relay SPDT contact output: 5A-250Vac, 5A-30Vdc [resistive load] Fuse Protection: 5A, 250V slow-blow fuse Data Storage Interval Log: Up to 100 files, with a maximum of 8600 records per saved file. When the limit of 100 saved files is reached, the latest file automatically erases the oldest file.
Price range
Delivery Time
Applications/Examples of results

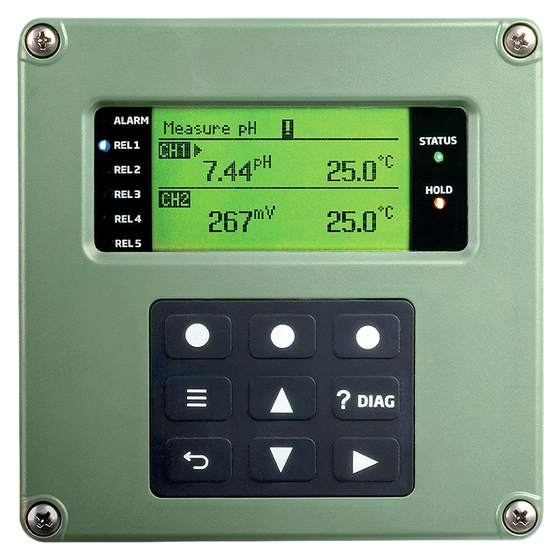

■Application This is an advanced process controller that can be configured for applications requiring monitoring and control of the four main water quality analysis parameters: pH, ORP, conductivity, and dissolved oxygen. These controllers feature digital electrode inputs that automatically detect and update the parameters being measured. The MF2AP631 type supports dual channels.
