Compact portable "WiFi Protocol Analyzer V3" fully compatible with WiFi 7 (IEEE 802.11be) and the 6GHz band.

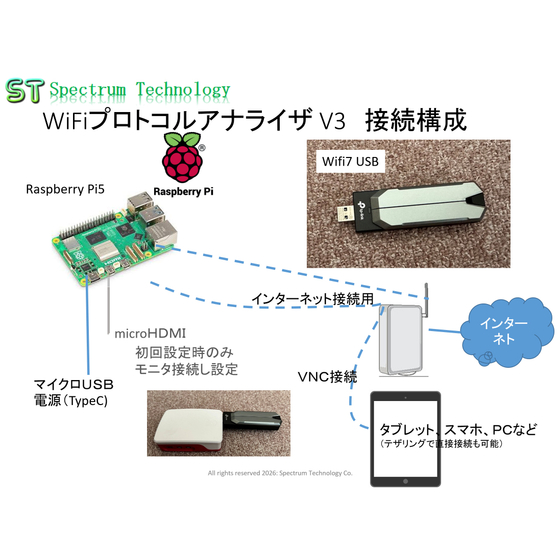

This product is based on the latest Raspberry Pi 5 and works in conjunction with the WiFi 7 USB adapter (TP-Link Archer TBE400UH). It supports a wide bandwidth from 20MHz to 160MHz, enabling packet capture and analysis across all bands of 2.4/5/6GHz, including the 6GHz band. It also supports MLO with multiple WiFi 7 USBs. All drivers and related software are pre-installed, making it ready for immediate use. It can be widely used for radio interference investigation, fault diagnosis, performance verification, and more.
Inquire About This Product
basic information
Supported Wifi Communication, Protocols, etc. 6GHz Supports channels from ch1 (5955MHz) to ch93 (6415MHz) with bandwidths of 20MHz-160MHz. Communication speed supports up to 2,882Mbps. 5GHz Supports channels from ch36 (5180MHz) to ch144 (5720MHz) with bandwidths of 20MHz-160MHz. Communication speed supports up to 2,882Mbps. 2.4GHz Supports channels from ch1 (2412MHz) to ch14 (2484MHz) with bandwidths of 20/40MHz. Communication speed supports up to 688Mbps. MLO (Multi-Link Operation) Simultaneous packet acquisition on 2.4/5/6GHz using multiple Wifi7 USB devices. Supported Protocols: IEEE 802.11a/b/g/n/ac/ax/be Analysis Software Wireshark: Detailed analysis of Wifi packets, automatic saving program using tshark (Python) Kismet: Visualization of all channels and detection of rogue APs airodump-ng: Real-time scanning wavemon / horst: RSSI visualization
Price information
66,000 yen (including tax)
Price range
P2
Delivery Time
※About one week.
Applications/Examples of results
Target Users Individuals from companies and schools conducting research, development, and evaluation tests on WiFi 7 devices Individuals from companies performing fault analysis of corporate networks and identifying sources of interference in factories and offices Individuals from companies conducting site surveys before the introduction of 6GHz
Company information
Our company provides a comfortable wireless LAN (WiFi) and M2M environment through wireless visualization. Additionally, we conduct on-site surveys and troubleshoot issues through radio wave surveys, security investigations, and traffic surveys. Please feel free to contact us if you have any requests.
