Micronizer to improve reaction efficiency

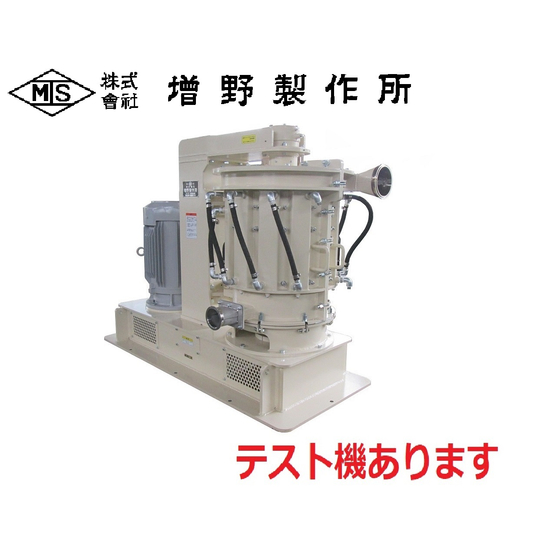

In the chemical industry, fine grinding of raw materials is important to enhance reaction efficiency. To maximize the reaction surface area and improve the reaction rate, a fine powder with a uniform particle size distribution is required. The New Micro Cyclomatt is a grinder that causes the raw materials to self-destruct due to pressure fluctuations from high-speed airflow. This allows for the desired particle size to be achieved and contributes to improved reaction efficiency. 【Application Scenarios】 - Streamlining chemical reaction processes - Uniform mixing of raw materials - Enhancing reaction rates 【Effects of Implementation】 - Improved reaction efficiency - Stabilization of product quality - Cost reduction
Inquire About This Product
Related Videos
basic information
【Features】 - Minimal temperature rise due to airflow grinding - Prevention of metal powder contamination - Easy particle size adjustment - Ability to adjust product particle size using a recycling circuit - Capable of hot air drying grinding, cold air cooling grinding, and cryogenic grinding 【Our Strengths】 Since our founding in 1913, we have focused on machinery for the powder industry and have a long track record in the chemical field. We can propose fine grinding systems tailored to customer needs.
Price information
-
Delivery Time
Applications/Examples of results
<Crushing of Plants and Food Products> Rice, rice bran, wheat, grains (seeds and husks), soybeans and soybean meal, tea leaves, dried fish, bones, seaweeds, dried vegetables and fruits, various processed foods, health foods, fragrances, spices, nuts, pollen, leaves, roots, bamboo grass, etc. <Crushing of Mineral Products> Clay, kaolin, barite, bauxite, manganese dioxide, limestone, tantalite, mica, graphite, white clay, talc, etc. <Crushing of Plastics> - Thermoplastic resins… Polyvinyl chloride, polyethylene, polypropylene, polycarbonate, etc. - Thermosetting resins… Phenolic resin, urea resin, etc. <Crushing of Chemical Products> Carbon, rubber accelerators, animal glue, gelatin, stearic acid, ferrite, lead oxide, pigments, cosmetic powders, etc.
Line up（5）
| Model number | overview |
|---|---|
| MCM-3 | Outer diameter: 280 mm, inlet dimensions: 20 mm × 70 mm, motor: 5.5 kW, generated air volume: ~3 m³/min, capacity: 3–100 kg/h, approximate machine weight: 250 kg. |
| MCM-5 | Outer diameter: 390 mm, inlet dimensions: 30 mm × 80 mm, motor: 11–15 kW, generated air volume: up to 5 m³/min, capacity: 7–250 kg/h, approximate machine weight: 1,100 kg. |
| MCM-15 | Outer diameter: 680 mm, inlet dimensions: 50 mm × 100 mm, motor: 30–37 kW, generated air volume: up to 15 m³/min, capacity: 15–600 kg/h, approximate machine weight: 1,500 kg. |
| MCM-30 | Outer diameter: 850 mm, inlet dimensions: 60 mm × 160 mm, motor: 55 kW, generated air volume: ~30 m³/min, capacity: 20–900 kg/h, approximate machine weight: 3,800 kg. |
| MCM-50 | Outer diameter: 1,000 mm, inlet dimensions: 70 mm × 230 mm, motor: 90–110 kW, generated air volume: up to 50 m³/min, capacity: 40–1,500 kg/h, approximate machine weight: 4,500 kg. |
catalog（2）
Download All Catalogs
Company information
Since our founding in 1913, our company has focused on developing and manufacturing machinery for the powder industry, centered around crushing, grinding, classification, drying, and calcination, as well as general industrial machinery for sectors such as chemicals, glass, cement, steel, and mining, along with machinery related to environmental protection and recycling. The applications and demand for our products span a wide range of industries, contributing to the development of various sectors including chemicals, glass, carbon, cement, silica sand, steel, lime, building materials, new materials, and food (such as tea leaves, rice, kelp, young barley leaves, buckwheat, soybeans, corn, and bonito flakes).
