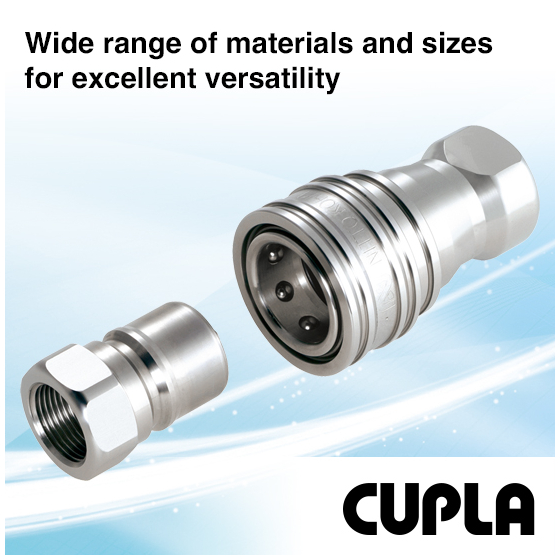

Versatile and excellent! Quick fluid coupling "SP Coupler Type A" made of stainless steel.
Both the plug and socket are equipped with automatic opening and closing valves to prevent fluid leakage!
The "SP Coupler Type A" is a quick fluid connector for medium pressure and general use. It is equipped with an automatic opening and closing valve in both the socket and plug. It offers a wide variety of body materials, mounting sizes, and seal materials, providing excellent versatility. 【Features】 - Both the socket and plug are equipped with automatic opening and closing valves to prevent fluid leakage during disconnection. - Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications and situations.
Inquire About This Product
Related Videos
basic information
【Specifications】 Main body material: Stainless steel Mounting sizes: Rc1/8, Rc1/4, Rc3/8, Rc1/2, Rc3/4, Rc1, Rc1/4, Rc1 1/2, Rc2 Maximum operating pressure: 2.0, 3.0, 4.5, 7.5MPa (varies by size) Operating temperature range: -20℃ to +80℃, etc. 【Active in these scenes of secondary battery manufacturing processes!】 ● Raw material process (battery material manufacturing process) - In the stirring equipment during the reaction and stirring stages - In the spray dryer during the drying stage ● Raw material process (battery manufacturing process) - In the continuous kneader and batch mixer during the mixing stage - In the continuous drying furnace during the drying stage - In the assembly process for lamination, stacking, and assembly
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
Company information
The NITTO KOHKI Group supports comfortable living and a prosperous future across a wide range of fields—from construction sites to the aerospace industry and global environmental maintenance projects. We respond to increasingly diverse needs with outstanding engineering that promotes efficiency and labor-saving. Our unique technologies are developed from the user’s perspective, creating convenient and innovative tools that serve as bridges to the next generation.
