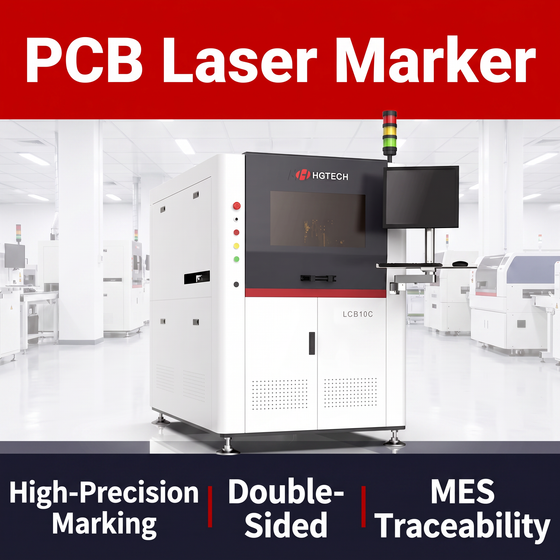

Simultaneous dual-side marking for reduced takt time. High-precision laser marking system compatible with MES integration.
In the semiconductor industry, precise marking on substrates is essential for fine processing. Especially as products become smaller and more densely packed, ensuring the accuracy of marking and traceability is crucial for quality control and yield improvement. Misalignment and marking defects not only undermine product reliability but also lead to increased manufacturing costs. Our PCB inline laser marker achieves high-precision marking while correcting substrate misalignment through an XY drive head and CCD substrate recognition. It also enables traceability management through MES integration, contributing to quality control and efficiency in semiconductor manufacturing. 【Usage Scenarios】 - Marking of model numbers, serial numbers, logos, etc., on semiconductor substrates - High-speed marking on inline production lines - Management of manufacturing history through MES integration 【Benefits of Implementation】 - Quality improvement through high-precision marking - Reduction of tact time with dual heads - Strengthening of traceability through MES integration - Prevention of substrate contamination with dust suction mechanisms
Inquire About This Product
Related Videos
basic information
【Features】 - Simultaneous marking on both sides due to dual-head structure - High-precision marking with XY drive head and CCD substrate recognition - Traceability management through MES integration - Compatibility with various laser light sources (UV, CO₂, fiber, MOPA, Green) - Prevention of substrate contamination with dust suction mechanism 【Our Strengths】 We provide total solutions for the implementation of electronics products. Centered around Panasonic Connect's mounting equipment, we support the resolution of challenges faced by our global customers, from peripheral equipment to technical support and maintenance. With a rich product lineup and high technical capabilities, we meet our customers' needs. Please take a look at our company introduction video. https://www.youtube.com/watch?v=efdEd2BVT-A
Price range
Delivery Time
Applications/Examples of results
Applications and Examples of Achievements Electronic Circuit Board Marking PCB QR Code DataMatrix Engraving Serial Number Printing Circuit Board Traceability Main Industries Automotive Electronic Circuit Boards Semiconductor Boards Communication Equipment Boards LED Boards Home Appliance Boards Marking Examples QR Code DataMatrix Serial Number Manufacturing History Code
