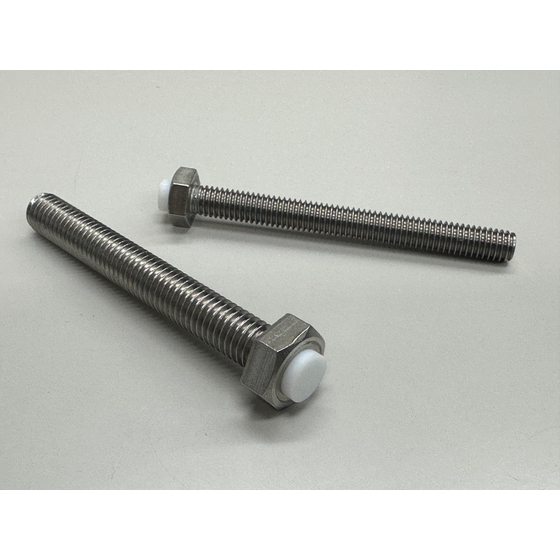

"Zero Adhesive for Reduced Outgassing" Stop Bolt with PTFE Pad - Adhesive-free structure for a clean environment.
A stop bolt with a PTFE pad developed for semiconductor manufacturing equipment and vacuum devices. The tip pad uses fluororesin (PTFE), while the bolt body is made of SUS316(L), which has excellent corrosion resistance. The main feature is a mechanical fixation structure that does not use any adhesives, which suppresses outgassing and is ideal for clean environments. PTFE has a heat resistance of approximately 260°C and excellent chemical resistance, maintaining stable performance even in acidic, alkaline, and solvent environments. Its low friction characteristics prevent scratches on the workpiece, making it ideal for precision positioning applications. Compared to conventional urethane and POM pad products, it significantly improves reliability in high-temperature, chemical, and vacuum environments, making it a high-performance positioning stopper.
Inquire About This Product
basic information
Material Main body: SUS316(L) Spacer: SUS316L Pad: PTFE
Price range
Delivery Time
Applications/Examples of results
■Intended Use - Semiconductor manufacturing equipment - Vacuum equipment - FPD manufacturing equipment - Positioning stoppers for precision machinery - Equipment mechanisms in chemical environments
Company information
Our company manufactures and sells spring plungers, ball rollers, and special screws. We have been manufacturing spring plungers for 30 years. We will continue to strive for quality improvement to meet our customers' expectations even more. We also engage in the design and development of our products tailored to customer needs and are actively working on new businesses, such as the manufacturing and sales of CFRP bolts. 【Production Items】 Ball plungers Spring plungers Conveyor ball rollers (ball transfers) Simple slide guides for jigs Special screws Mold bolts Carbon bolts Tubes and valves for semiconductor manufacturing equipment (subsidiary)
