Clean irrigation water with ozone + micro-nano bubbles.
In the agricultural sector, the management of irrigation water quality significantly impacts crop growth. In particular, organic matter and harmful substances contained in drainage can lead to soil contamination and a decline in crop quality. Additionally, as water shortages become more severe, the reuse of drainage is an important issue for effectively utilizing limited resources. The drainage treatment system "Ozack" improves the quality of irrigation water by combining ozone and micro-nano bubble technology, supporting the healthy growth of crops. 【Usage Scenarios】 - Purification of agricultural water - Reuse of irrigation water - Compliance with drainage standards 【Effects of Implementation】 - Improved crop quality due to better water quality - Effective use of water resources through drainage reuse - Reduction of environmental impact
Inquire About This Product
Related Videos
basic information

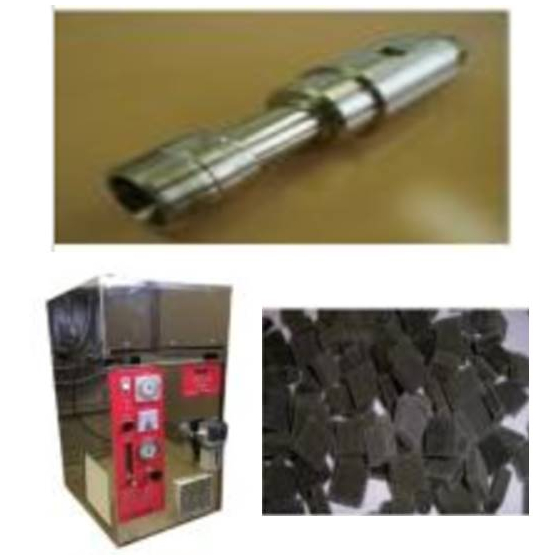

**Features** - High purification power through the synergistic effect of ozone and micro-nano bubbles - Adsorption and decomposition of COD, BOD components, and ammonia using a carrier containing activated carbon - Space-saving design without the need for a sedimentation tank - Easy installation into existing facilities - Suppression of excess sludge generation **Our Strengths** - Extensive knowledge and experience as a specialized environmental equipment trading company - Product development capabilities utilizing micro-nano bubble technology - Optimal system proposals tailored to customer needs - Provision of sample tests and demo units before installation
Price range
Delivery Time
Applications/Examples of results
【Features】 ■ n-Hex countermeasures, oil (fat) countermeasures ■ Odor improvement ■ SS suppression ■ Reduction of excess sludge, decrease in chemical dosing ■ Can be installed without altering existing equipment ■ Energy-saving (two-thirds of standard activated sludge treatment) ■ Space-saving (one-fourth to one-half of standard activated sludge treatment) ■ Operable even below 10°C due to the far-infrared effect of activated carbon 【Results】 ■ Nagaoka Meat Center wastewater treatment facility 【Before Installation】 【After Installation】 【BOD】 Normal: 500[mg/L] ⇒ 23[mg/L] 【COD】 Normal: 100[mg/L] ⇒ 17[mg/L] 【SS】 Normal: 540[mg/L] ⇒ 16[mg/L] 【n-Hex】 Normal: 220[mg/L] ⇒ 5[mg/L] (Reference) Water Quality Pollution Prevention Law Regulation Values BOD: 60[mg/L] or less, COD: 160[mg/L] or less SS: 90[mg/L] or less, n-Hex: 30[mg/L] or less
catalog（1）
Download All Catalogs
Company information
We are a trading company that meets environmental needs with excellent products such as the micro-nano bubble (fine bubble) generation device "YJ Nozzle," the wastewater treatment system "Ozack," and the parts cleaning system "Bio Circle," which allows for the reuse of cleaning liquids. We cover a wide range of environmentally friendly and original products, including micro-nano bubbles, aeration devices, measuring instruments, and anti-corrosion coatings, and we actively propose environmental technologies and products as a specialized trading company for environmental equipment.
