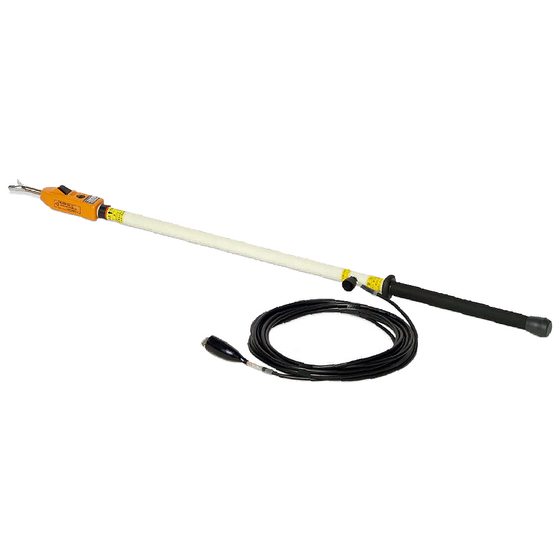

AC/DC dual-purpose high voltage and extra high voltage voltage tester / Model number M132ST-EH20NH
●AC/DC dual-purpose voltage tester
The M132ST-EH20NH is a new model that has reduced the weight of the SHS-20N.
Inquire About This Product
basic information
■Specifications Model Number M132ST-EH20NH M132SR-EH90NH Operating Voltage Range AC 3kV～25kV 6～90kV DC Starting Operating Voltage (Against Ground Voltage) AC 1000V±20% 1000V±20% DC 3000V±20% Frequency 50/60Hz Insulation Resistance Between Detection Unit and Ground Terminal: AC50kV (1 minute) Between Detection Unit and Ground Terminal: AC180kV (1 minute) Leakage Current 0.5mA or less (during insulation resistance test) - Battery Used Alkaline Button Battery LR44 (1.5V) ×2 Two AA Batteries Battery Life Approximately 4 hours (continuous operation) - Operating Temperature Range -10℃～+40℃ Weight Approximately 610g (main unit only) Approximately 1.5kg (main unit only)
Price range
Delivery Time
Applications/Examples of results
● The M132SR-EH90NH supports a wide range from high pressure to ultra-high pressure. ● Acoustic lighting: It notifies you of operation with sound and light. ● Drip-proof: It has a structure that minimizes harmful effects from water droplets.
