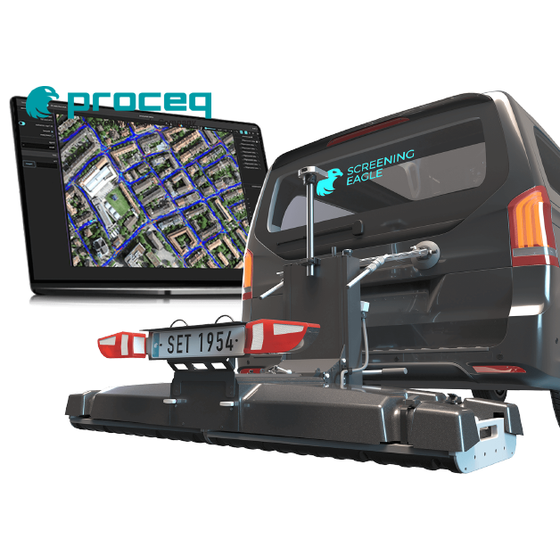

Underground modular multi-channel GPR mobile mapping system!
The "GM8000" is a high-speed dynamic range interchangeable GPR array developed for underground mapping. This system provides top-class density information accurately mapped in 3D. It achieves 100% modularity in high-speed underground mapping, along with an efficient workflow and powerful data insights. Equipped with virtually unlimited data management and computational capabilities, it allows for various applications by switching between arrays for near-surface and deep detection. It supports accurate mapping even under harsh conditions. 【Features】 ■ High-speed dynamic range interchangeable GPR array ■ Top-class density information accurately mapped in 3D ■ Virtually unlimited data management and computational capabilities ■ High-speed data collection with a direct path to the office ■ Easy setup, operation, and insights *For more details, please download the PDF (English version) or feel free to contact us.
Inquire About This Product
basic information
【Technical Specifications】 ■ Radar Technology: Stepped-frequency GPR ■ Modulation Frequency Range: 500-3000MHz/30-750MHz ■ Channel Spacing: 2.5cm (VV), 5.5cm (HH)/7.5cm ■ Scan Width: 1.75m/1.67m ■ Scan Rate: 27500 scans/s / 22000 scans/s *For more details, please download the PDF (English version) or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Utility Mapping / Subsurface Utility Engineering (SUE) ■ Surveying and Reality Capture ■ Road Inspection / Bridge Inspection ■ Airport Survey / Structural Survey ■ Geophysical Survey / Archaeology / Forensic Investigation and Unexploded Ordnance / Precision Agriculture *For more details, please download the PDF (English version) or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Tectus Japan is the Japanese subsidiary of a Swiss inspection equipment manufacturer headquartered in Zurich. We primarily provide concrete inspection solutions and related services for the Japanese market. Our company offers world-class ground penetrating radar (GPR) and ultrasonic pulse echo equipment, centered around the Swiss brands Proceq and Screening Eagle, and is committed to improving the integrity and maintainability of infrastructure and various assets. By combining IoT-enabled software with advanced sensors, we acquire highly accurate and reliable data to support the preservation of critical assets across various industries, including construction, infrastructure, oil and gas, transportation, and energy.
