Faster and easier concrete inspection with SFCW ground-penetrating radar technology!

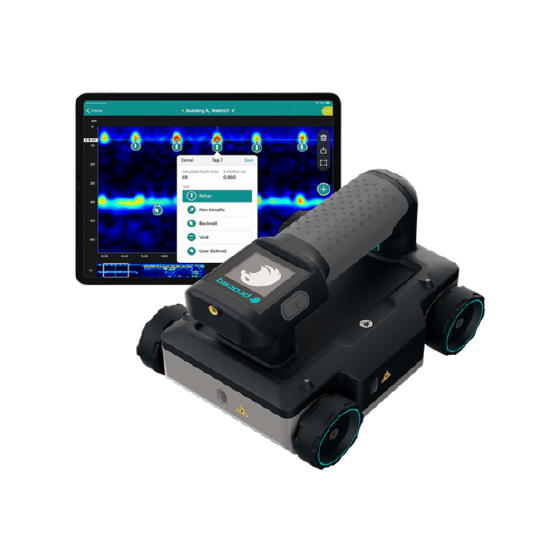

The "GP8000" is a portable concrete GPR radar that employs SFCW ground-penetrating radar technology. With a single GPR probe, it achieves unparalleled radar penetration depth and resolution. It supports wireless multi-use, allowing for comfortable concrete inspection without cables, from narrow spaces to high walls and long roads. Thanks to its unique Swiss technology equipped with all necessary radar frequencies, it provides excellent GPR depth and clear data. Immediate insights through 3D and augmented reality enable faster and easier concrete assessments. 【Features】 ■ Unmatched radar penetration depth and resolution ■ Powerful and user-friendly interface ■ Excellent handling and ergonomics for all applications ■ Immediate insights through 3D and augmented reality ■ Mobile app for annotating measurements with voice, photos, and comments *For more details, please download the PDF (English version) or feel free to contact us.
Inquire About This Product
basic information
【Technical Specifications】 ■ Radar Technology: Step Frequency Continuous Wave (SFCW) GPR ■ Modulation Frequency Range: 200-4000MHz ■ Detection Depth: Up to 150cm/60 inches ■ Battery: Flight-safe, removable pack, 8xAA (NiMH) ■ Dimensions: 22.1x18x14cm ■ Weight: 1.5kg (excluding battery pack) *For more details, please download the PDF (English version) or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Application】 ■Inspection of pavement and bridge decks ■Check the position of rebar and live wires before drilling, cutting, and coring ■Location of shallow utilities ■Quality assessment of concrete *For more details, please download the PDF (English version) or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Tectus Japan is the Japanese subsidiary of a Swiss inspection equipment manufacturer headquartered in Zurich. We primarily provide concrete inspection solutions and related services for the Japanese market. Our company offers world-class ground penetrating radar (GPR) and ultrasonic pulse echo equipment, centered around the Swiss brands Proceq and Screening Eagle, and is committed to improving the integrity and maintainability of infrastructure and various assets. By combining IoT-enabled software with advanced sensors, we acquire highly accurate and reliable data to support the preservation of critical assets across various industries, including construction, infrastructure, oil and gas, transportation, and energy.
