Rapid detection of objects with high-productivity concrete GPR arrays!

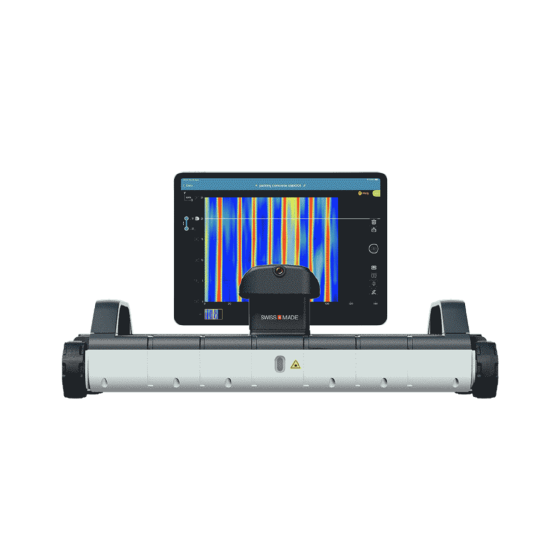

The "GP8100" is a ground radar that enables excellent data collection through a highly productive portable concrete GPR array. It improves scanning efficiency with an effective scan width of 25 cm and a penetration depth of 80 cm. One scan is equivalent to six conventional line scans, allowing for the collection of very high-density GPR data all at once. By using the super line scan view, it provides an appropriate solution for detecting objects of various sizes and marking them on the concrete surface more easily and quickly than ever before. 【Features】 ■ Large scan width, high scan rate, and class-leading penetration depth ■ Fast detection of objects of various sizes with the super line scan view ■ High-density and accurate GPR data collection in a single super line scan ■ Innovative design with top-level data clarity *For more details, please download the PDF (English version) or feel free to contact us.
Inquire About This Product
basic information
【Technical Specifications】 ■ Radar Technology: Step Frequency Continuous Wave (SFCW) GPR ■ Modulation Frequency Range: 400-4000MHz ■ Detection Depth: 80cm ■ Battery: Flight-safe, removable pack, 8xAA (NiMH) ■ Dimensions: 41.5x22.5x13.2cm ■ Weight: 3.0kg (excluding battery pack) *For more details, please download the PDF (English version) or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Application】 ■ Concrete inspection of large areas of all buildings or bridge decks ■ Detection of objects and prevention of damage before drilling, coring, or cutting concrete ■ GPR data collection for specific structural evaluation and post-processing data ■ Quality assessment of concrete *For more details, please download the PDF (English version) or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Tectus Japan is the Japanese subsidiary of a Swiss inspection equipment manufacturer headquartered in Zurich. We primarily provide concrete inspection solutions and related services for the Japanese market. Our company offers world-class ground penetrating radar (GPR) and ultrasonic pulse echo equipment, centered around the Swiss brands Proceq and Screening Eagle, and is committed to improving the integrity and maintainability of infrastructure and various assets. By combining IoT-enabled software with advanced sensors, we acquire highly accurate and reliable data to support the preservation of critical assets across various industries, including construction, infrastructure, oil and gas, transportation, and energy.
