The analysis items include stress, vibration eigenvalues, buckling, thermal conduction, as well as fatigue, drop, and non-linearity, supporting high-end level CAE.
SolidWorks Simulation is a CAE tool for designers that integrates the analysis capabilities of a general-purpose finite element analysis system into SolidWorks.
![0905[1].jpg](https://image.mono.ipros.com/public/product/image/edf/214530006/IPROS_10282734653244480000.jpg?w=280&h=280)
Inquire About This Product
basic information

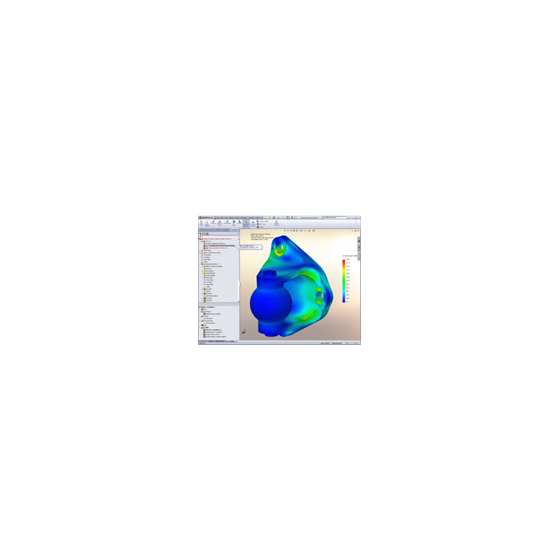

You can perform structural analysis directly within the same window for models designed in SolidWorks. The analysis options include stress, vibration eigenvalues, buckling, thermal conduction, as well as fatigue, drop, and non-linear analyses, supporting high-end level CAE. Furthermore, by integrating with fluid analysis and kinematic analysis, it enables a wide range of applications such as cooling issues for enclosures and cam strength design.
Price information
1,500,000 yen or more
Price range
P5
Delivery Time
Applications/Examples of results
With a rich array of analysis items, it can be utilized in various design tasks. The main users come from industries such as machine tools, automobiles, and home appliances, as well as research institutions in fields like medical and aerospace, and it is also used in education at technical high schools, colleges of technology, and universities.
