Achieves compactness and lightweight design. Balances cost performance with enhanced features.
Continuous or standalone testing of dielectric strength and insulation resistance 【Features】 ○ Complies with various safety standards such as the Electrical Appliance and Material Safety Law ○ Safety-focused design with interlock and key lock functions ○ Equipped with memory function for nine types of test conditions ○ Status output to display test conditions and measurement results ○ Remote control I/O for external control compatibility ○ Large LED display for simultaneous showing of test conditions and measurement values ○ Approximately 50% smaller and 30% lighter compared to conventional models ○ Outputs test conditions and results via RS-232C ● For more details, please contact us or download the catalog.
Inquire About This Product
basic information

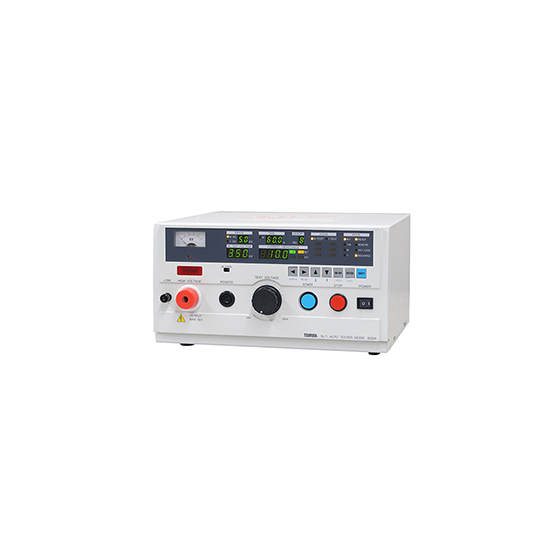

This is an automatic dielectric strength insulation test that can perform automatic continuous testing of dielectric strength and insulation resistance. It has a dielectric strength test of AC 5kV, an output capacity of 500VA, and insulation resistance tests of DC 500V/1000V, with a capacity of 2000MΩ, allowing for testing of electrical equipment, electronic components, etc., based on various safety standards. ● For more details, please contact us or download the catalog.
Price information
-
Delivery Time
Applications/Examples of results
It is used for dielectric strength insulation tests of electrical equipment, electronic components, etc. It can be utilized for the construction of automatic testing systems, such as automatic continuous tests for dielectric strength and insulation resistance.
catalog（1）
Download All Catalogs
Company information
For over 70 years, we have continued to focus on "measuring" under the auspicious company name of Tsuruga and New Year greetings. We have accumulated valuable know-how from a wide range of fields, from analog indicators and meter relays to digital panel meters, a diverse range of printer application products, testing and measuring instruments, converters, and even the design and construction of FA measurement systems. In the current era of significant transformation across all industries, Tsuruga aims to deepen its expertise and respond promptly to increasingly specialized individual specification needs, striving to be a company that truly helps you achieve "maximum results with minimal investment."
