Handheld Manometer "PG-100N Series"
PG-100N Series Nidec Components

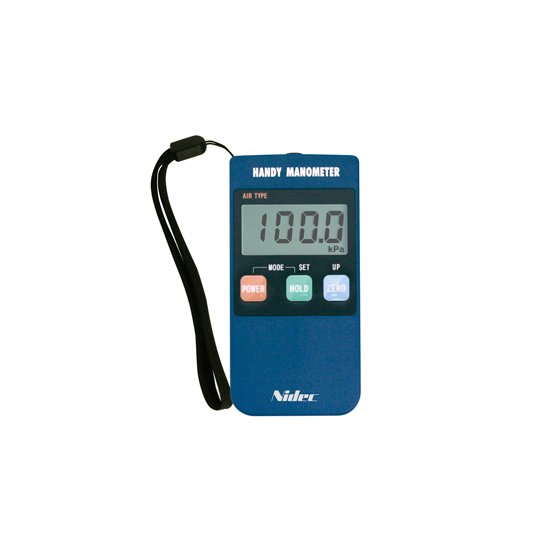

Handheld Manometer PG-100N
【Main Specifications】 (1) Rated Pressure Range Gauge Pressure: ±10kPa, ±100kPa, -100 to 1000kPa (2) Operating Temperature Range 0 to 50℃ (Operating and Compensated Temperature) (3) Power Supply Two AA batteries (Manganese, Alkaline, Nickel Hydride) (4) Operating Time Over 1000 hours (Alkaline batteries) (5) Display 3.5 digits LCD display (6) Display Frequency Approximately 3 times/second (7) Display Accuracy ±1.5%FS±2Digits (101R), ±1.0%FS±2Digits (102R, 103R) (8) Analog Output (Optional) External Power Supply: 5±0.5VDC, 5mA or less Voltage Output/Accuracy: ±1000mV/10mV (9) Fitting M5 male thread/Two included attachments: Half union (for outer diameter φ6 tube) Barbed fitting (for outer diameter φ6 × inner diameter φ4 tube) (10) Dimensions 55×110×16.9 (mm)
Inquire About This Product
basic information
Pressure check anytime, anywhere! A slim and lightweight portable pressure sensor. 【Features】 (1) LCD display with 3.5 digits (2) Compatible with compound pressure (3) Large display for easy visibility (4) High functionality (zero adjustment, auto power off, unit switching) (5) Powered by commercially available AA batteries (6) Analog output function (optional)
Price information
-
Delivery Time
Applications/Examples of results
It is suitable for a wide range of applications such as general industrial equipment, pneumatic equipment, FA lines, and medical devices.
