"Arch culvert" published in the Road Geotechnical Culvert Construction Guidelines.
○ It is an arch culvert with a very rational shape as a structure. ○ It can be used for various purposes such as sewage, drainage, underground rivers, underpasses, and utility tunnels. ○ It is a culvert that demonstrates advantages when the soil cover exceeds 3 meters. ○ Depending on the design conditions, it can also accommodate soil cover exceeding 10 meters. ○ It is a low-carbon concrete product made using fine powder from blast furnace slag.
Inquire About This Product
basic information
○ Arch culverts have an arched shape at the top and a box shape at the bottom, allowing the upper load to be transmitted as axial compressive force. This significantly reduces the bending moments occurring in the upper part and side walls compared to box shapes, enabling them to possess high strength. Therefore, they are particularly effective against large soil cover and demonstrate economic efficiency. ○ Arch culverts can ensure high water-tightness by using rubber rings at the joints. ○ Since arch culverts use rubber rings, there is no need to apply mortar joints at the joints, making construction simple and demonstrating economic efficiency through shortened construction periods. Additionally, there is no need for concrete wrapping required for circular pipes, resulting in excellent workability and cost-effectiveness. ○ There are three types of arch culverts based on soil cover conditions: I Type……… Standard thickness with standard reinforcement II Type……… Standard thickness with increased reinforcement Special Thick Type… Approximately 30% thicker than I Type For inquiries regarding concrete secondary products, please contact Takamizawa Concrete Division.
Price range
Delivery Time
Applications/Examples of results
For more details, please contact us.
Detailed information
-

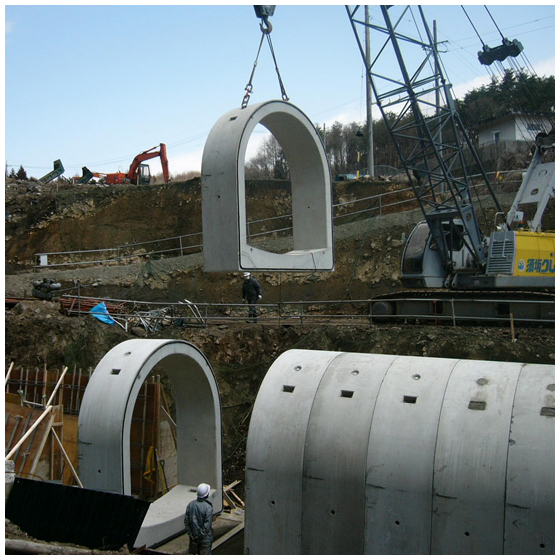

Construction Case 1-1 This is a construction example. Soil cover = 15.5m
-
Construction Case Study 1-2 This is a construction case study.
Company information
Our company manufactures and sells concrete products primarily in Nagano Prefecture and the surrounding areas. For concrete products, please leave it to Takamizawa Concrete Division.
