Detection Switch "CL-DA Series"
CL-DA Nidec Components

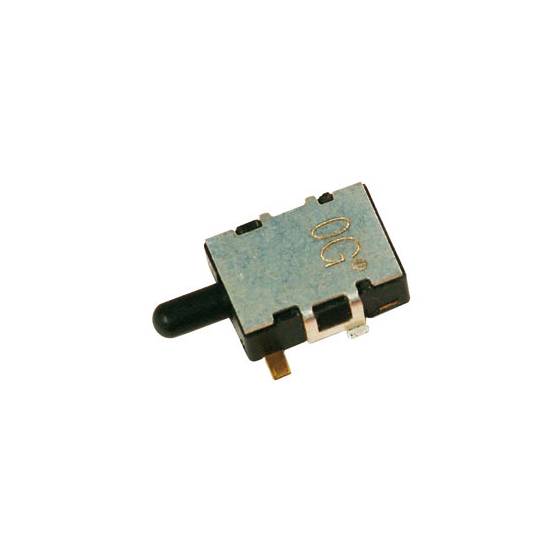

A detection switch that is the same shape as the switches used in A-TCA standards, compact, slim type, and capable of operation from the side.
The "CL-DA series" is a detection switch developed for communication equipment and industrial devices. It is a detection switch that can operate from the side, featuring a compact and slim design with dimensions of 5.0 mm in width, 5.7 mm in depth, and 2 mm in height. Despite its small size, it ensures a stroke of 2.4 mm and is available in both normally open and normally closed types, utilizing gold-plated contacts for excellent contact reliability.
Inquire About This Product
basic information
Operating temperature range: -40 to 85°C Net weight: 0.093 g Operating strength: 5 N, 60 s Insulation resistance: 100 MΩ (DC 100 V) minimum Dielectric strength: AC 200 V, 60 s Contact resistance: 100 mΩ maximum Heat resistance: 85°C, 96 h no load
Price range
Delivery Time
Applications/Examples of results
For position detection of communication equipment, AV equipment, industrial equipment, security equipment, etc.
