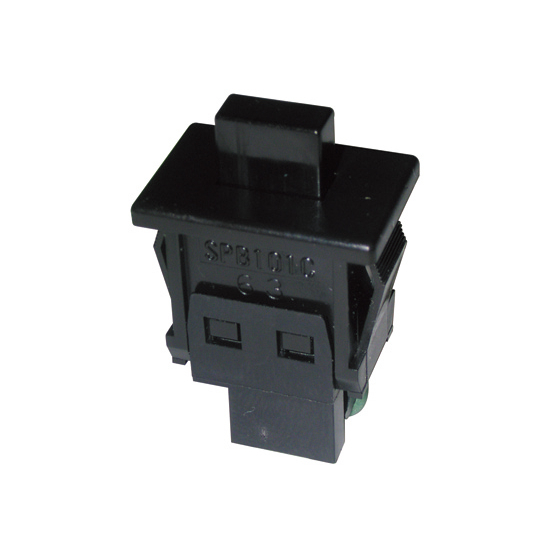

Detection switch long stroke (5mm), high contact reliability due to self-cleaning mechanism.
● High contact reliability ● The contact part adopts a self-cleaning mechanism through sliding contact. Long stroke with a total stroke of 5 mm allows for reliable detection due to the wide ON and OFF range. ● Snap-in mounting method for the panel ● Terminals compatible with connector mounting ● The terminal section allows for one-touch attachment of the connector, improving lead wiring work ● Compatible with EHR-2 and EHR-3 connectors manufactured by Japan Crimped Terminal Manufacturing Co., Ltd.
Inquire About This Product
basic information
Rated Specifications: Silver-plated contacts: Maximum rating DC 48V 50 mA (resistive load) Minimum rating DC 20 mV 0.5 mA (resistive load) Gold-plated contacts: Maximum rating DC 48V 50 mA (resistive load) Minimum rating DC 20 mV 1 μA (resistive load) Dielectric strength: AC 500V for 1 minute Initial contact resistance: 100 mΩ or less (AC 200 μV 1.5 mA) Insulation resistance: 100 MΩ or more (DC 500V) Electrical life: 50,000 cycles Operating force: 1.47 ~ 2.94 N Stroke: 5 mm (no detent) Operating temperature range: -25 ~ +85 ℃ Compatible connectors: Japan Crimp Terminal Manufacturing EHR-3 (SPB101BG) EHR-2 (SPB101B-1, SPB101C-1, SPB101CG-1)
Price range
Delivery Time
Applications/Examples of results
Communication equipment, financial terminals, disaster prevention equipment, amusement equipment, etc.
Company information
Since its establishment in 1967, our company has created numerous products for the electronics industry. As a result of our pursuit of advanced technology, we have included world-first and domestic-first new products among them. Additionally, we have been consistently supplying high-quality products, which has earned us recognition from a wide range of customers. Consequently, our trimmer potentiometers have achieved approximately 50% market share in the domestic market. Other various products also possess high marketability. We are actively responding to market needs. We are committed to meeting your needs, so please feel free to let us know.
