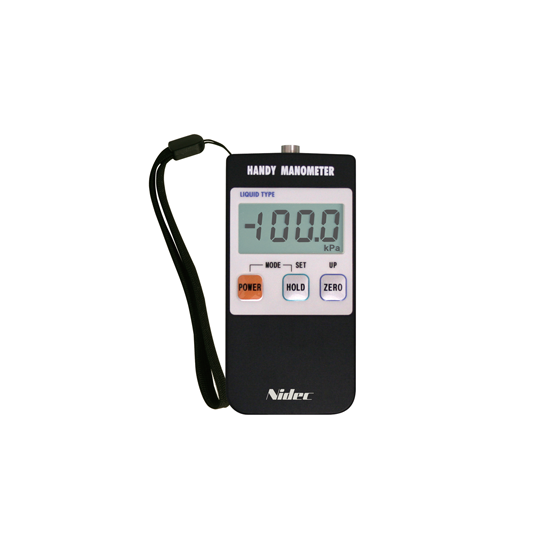

Handheld digital manometer "PG-100B Series"
PG-100B Nidec Components
Pressure check anytime, anywhere! A new hydraulic-compatible type was also released
The handheld manometer "PG-100B series" is a revolutionary portable pressure sensor with a built-in battery, capable of checking and monitoring the pressure of both gases and liquids. It features a diffusion-type semiconductor element as the pressure sensing element, a diaphragm made of SUS316L, and a digital temperature compensation circuit, achieving compactness, lightweight design, high precision, and excellent corrosion resistance. Additionally, with the incorporation of a dedicated microcontroller, it offers enhanced functionalities such as zero adjustment, auto power-off, and unit switching (for overseas use). Furthermore, a protective cover is standard equipment for the purpose of safeguarding the main unit. It uses commercially available AA batteries (2 pieces) for power and supports analog output via a dedicated connector.
Inquire About This Product
basic information
【Features】 (1) Large LCD display with 3.5 digits (2) Supports absolute pressure and differential pressure (3) High functionality (zero adjustment, auto power off, unit switching) (4) Powered by commercially available AA batteries (5) Equipped with analog output function 【Main Specifications】 Rated pressure range: (absolute pressure) 0–100 kPa abs, (gauge pressure) -100–100 kPa, -100–1000 kPa Operating temperature range: 0–50℃ (operating and compensation temperature) Power supply: 2 AA batteries Display: 3.5 digit LCD display Display frequency: Approximately 4 times per second Display accuracy: ±1.0% FS ±2 Digits (102R, 103R), ±2.0% FS ±2 Digits (102A) Analog output: (external power supply) 5±0.5VDC, below 5mA, (voltage output/accuracy) ±1000mV/10mV Connection: M5 male thread/attached accessories (quick connect fitting, insert ring) Dimensions: 55 × 110 × 16.9 (mm) *For more details, please contact us or refer to the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
Management of the original pressure of compressors, water treatment equipment, hydraulic measurement of plant facilities in chemicals, pharmaceuticals, food, etc.
Line up（3）
| Model number | overview |
|---|---|
| PG-100B-102R | Compression type: -100 to 100 kPa |
| PG-100B-103R | Compression type: -100 to 1000 kPa |
| PG-100B-102A | Absolute pressure type: 0 to 100 kPa (abs) |
