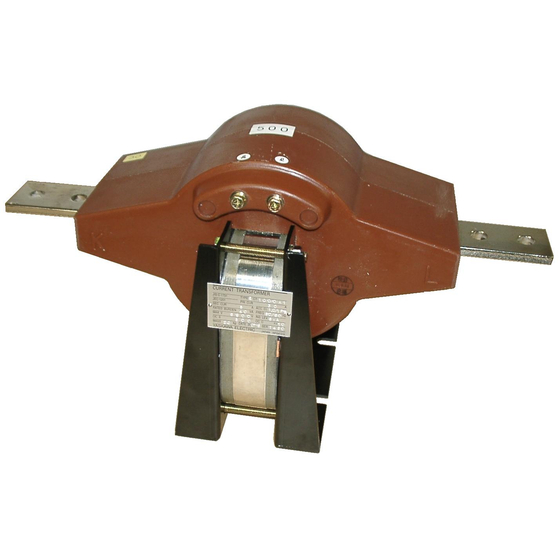

High voltage winding type current transformer 500 times/1 second & 800 times/1 second
ECT-1000A1 or ECT-1000A / Hirai Electric Co., Ltd.
Hirai Electric Meter Standard Product: Current Resistance 500 times/1 second & 800 times/1 second
This is a current transformer for circuits with a maximum voltage of up to 7.2kV/6.9kV. For overcurrent intensity of 500 times/1 second and overcurrent constant n>10, you can use model ECT-1000A1. For overcurrent intensity of 800 times/1 second and overcurrent constant n>5, you can use model ECT-1000A. The basic design complies with JIS C 1731-1/JEC-1201, but we can accommodate special specifications such as multiple taps or tertiary windings upon request. Place of production: Made in Japan (Kyoto).
Inquire About This Product
basic information
Common Specifications of ECT-1000A1 and ECT-1000A ■ Compliance Standards: JIS C 1731-1/JEC-1201 ■ [Rated Current (Primary Current Value/Secondary Current Value)] (1) ECT-1000A1 = 5A/5A, 10A/5A, 15A/5A, 20A/5A, 25A/5A 30A/5A, 40A/5A, 50A/5A, 75A/5A, 100A/5A (2) ECT-1000A = 5A/5A, 10A/5A, 15A/5A, 20A/5A, 25A/5A 30A/5A, 40A/5A, 50A/5A, 75A/5A ■ Rated Load: 40VA ■ Overcurrent Constant: ECT-1000A1 → n>10, ECT-1000A → n>5 ■ Accuracy Class: 1.0/1PS ■ Insulation Level: 6.9kV / 22kV / 60kV (Highest Voltage Circuit/Withstand Voltage/Lightning Impulse) ■ Rated Frequency: 50Hz/60Hz
Price information
The price varies depending on the requested quantity and specifications.
Price range
P2
Delivery Time
※Shipping from the Kyoto factory will take approximately 1.5 months after receiving the order.
Applications/Examples of results
There is a track record of use in the heavy electrical industry and other fields. It is also possible to use it for certification exams; in that case, please be sure to specify "for certification" separately when making your request.
Line up（2）
| Model number | overview |
|---|---|
| ECT-1000A1 | 5A ～ 100A / 40VA / n>10 / (500 times/1 second) |
| ECT-1000A | 5A ～ 75A / 40VA / n>5 / (800 times/1 second) |
