High resolution, instantaneous flow and cumulative amount, dispensing and control. High precision ultra-micro flow meter.
The "High-Pressure 4-Radial Piston Type Flow Meter" is a high-precision ultra-micro flow meter of the radial piston type. It features an unprecedented large rangeability of over 1000:1. Additionally, it has excellent repeatability, allowing for high-resolution measurements of instantaneous flow and cumulative consumption. 【Features】 ■ High-speed response / high-resolution output ■ Low pressure loss ■ Usable liquid viscosity (0.5 ~ 10000 cps) ■ Wide flow measurement range ■ Usable liquid temperature range (-40℃ ~ 225℃) ■ Repeatability of 0.1% or less ■ Compact design *For more details, please download the catalog or contact us.
Inquire About This Product
basic information

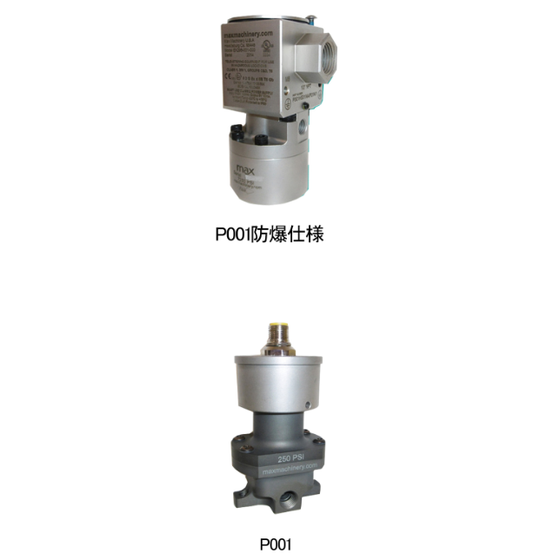

【Lineup】 ■P001 (50MPa pressure resistance) Flow measurement range: 0.005 to 200cc/min (0.3cc to 12L/Hr) Accuracy: Reading value ±0.2% or less Output: 12,000 p/cc ■P002 (52.5MPa pressure resistance) Flow measurement range: 1 to 2000cc/min (0.06 to 120L/Hr) Accuracy: Reading value ±0.2% or less Output: 1000 p/cc ■214-591/295 (52.5MPa pressure resistance) Flow measurement range: 0.005 to 10L/min (0.3 to 600L/Hr) Accuracy: Reading value ±0.2% or less Output: 90 p/cc 【Applications】 Direct injection injectors, high-pressure pump flow testing, leak measurement, brake fluid measurement, flow measurement of aircraft drive system components, dispensing and control of solvents and polymer materials, high-pressure flow measurement in chemical processes, etc. *For more details, please download the catalog or contact us.
Price range
Delivery Time
Applications/Examples of results
For details, please request the materials or view the PDF data from the download.
catalog（1）
Download All Catalogs
Company information
Our company has been the Japanese agent for MAX MACHINERY (CA, USA) for over 35 years, supporting various applications such as fuel consumption measurement and fuel system functional components for motorcycles, automobiles, buses, trucks, marine, construction machinery, and general-purpose engines, as well as fuel for aircraft engines and hydraulic fluids for aircraft functional components (ground performance testing). We have also provided long-term support for the measurement of JP fuel flow and MIL-STD hydraulic oil flow, as well as for the measurement and formulation control (PLC) of micro-flows of low to high viscosity chemical solvents and materials, urethane materials, adhesives, and other chemical process applications, improving and solving problems in these areas.
