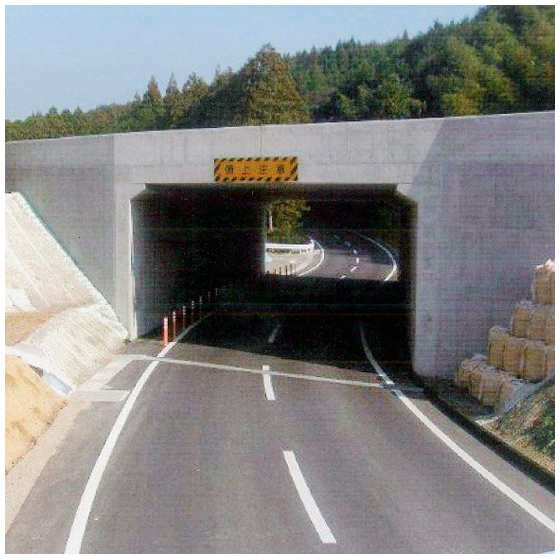

Large box culvert 'FA Box' with improved constructability and cost-effectiveness by combining slabs.
The FA box is a construction method that combines precast components divided into three parts with cast-in-place concrete to create a large cross-section box. - The product's structure consists of a combination of slabs, resulting in low manufacturing costs! - By using a separated structure (segmentation) for the top slab and side walls, it has become possible to standardly accommodate sites with slopes. - The connection is easily achieved by integrating with cast-in-place concrete using loop joints!
Inquire About This Product
basic information
The FA box is a construction method that combines precast components divided into three parts with cast-in-place concrete to create large-section boxes. By adopting a separated structure for the top slab and side walls, it has become possible to standardly accommodate sites with slopes. ○ The product's composition is a combination of slabs, which results in low manufacturing costs. ○ Traditionally, the connection of precast components often used PC steel materials, but the FA box integrates them using loop joints with cast-in-place concrete, making construction easier. ○ In addition to water-stopping gaskets at the joints between components, waterproofing materials are applied, and water-stopping sheets are used to enhance the water-stopping effect. For inquiries regarding concrete secondary products, please contact the Takamizawa Concrete Division.
Price range
Delivery Time
Applications/Examples of results
Please feel free to contact us.
Company information
Our company manufactures and sells concrete products primarily in Nagano Prefecture and the surrounding areas. For concrete products, please leave it to Takamizawa Concrete Division.
