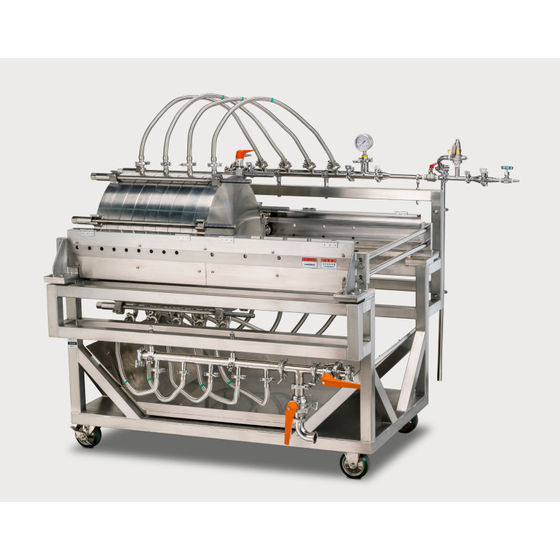

Pressure Circular Double-Sided Filter Plate Filtration Machine 'WFE Filter'
Adjustable filtration area with a single unit! A filtration device with a simple structure using a circular double-sided filter plate.
The pressurized circular double-sided filter machine "WFE Filter" is a new filtration device developed with the goal of simplifying equipment handling tasks and improving maintenance work after filtration, addressing the challenges of conventional filters. By reducing the number of parts, disassembly and assembly of the filtration surface is made easy, enhancing work efficiency, and internal cleaning has become easier, significantly improving cleanability. The unique nozzle arrangement allows for complete filtration of the filtrate, with the flow rate to each raw liquid chamber being uniformly controlled. 【Features】 ○ Simple structure with circular double-sided filter plates ○ Adjustable filtration area with a single unit ○ No dead flow compared to rectangular filter machines, with no deformation due to load ○ No liquid leakage outside the device due to the use of O-rings on the secondary side of the filter paper ○ Seal materials made from fluororesin allow for the filtration of organic solvent-based liquids For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Standard Specifications】 ○ Maximum Operating Pressure: 0.4MPaG ○ Maximum Operating Temperature: 80℃ ○ Main Materials: SUS316L/316/304 ○ Standard Model (Type 560) Dimensions → Filtration Area per Stage: 0.5m² → Width: 1250mm → Height: 1500mm → Nozzle: 1 1/2S → Maximum Number of Stages: 10 ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please contact us or download the catalog.
