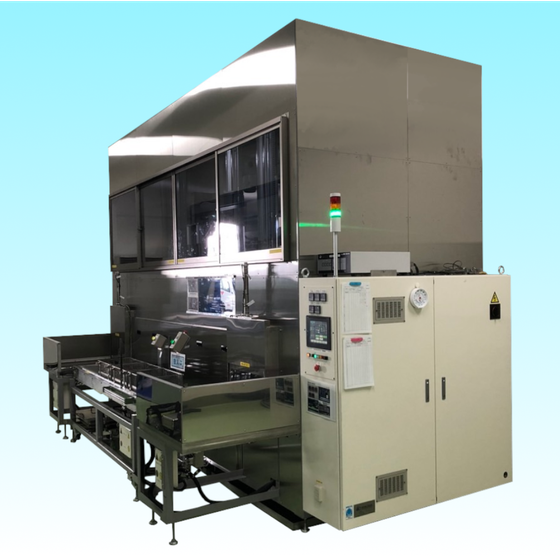

Cleaning and Drying Equipment "Water Cleaning and Drying System for Lenses and Glass Substrates"
After cleaning, we will ensure the complete removal of water stains and perform a quick finishing.
Most of the "water" that adheres to the glass substrate and is brought into the HFE drying device is removed from the device through specific gravity separation. The moisture that is supersaturated in the HFE solvent is reliably removed from the device by the "moisture removal device." A large amount of adhered "water" rapidly rises to the surface of the HFE liquid. 【Features】 ○ Significantly reduced energy consumption required for drying ○ Improved cleaning speed ○ Reliable removal of trace moisture contained in the HFE solvent For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Mechanism of Water Removal and Drying with HFE Solvent】 (1) The cleaned glass substrate is immersed in HFE solvent while still retaining water. (2) The water attached to the glass substrate is easily detached from the substrate due to the action of ultrasound and the density difference between pure water and the solvent, rapidly rising to the surface of the HFE liquid. (3) The water that has risen to the surface of the HFE liquid is directed to the water separation tank. (4) The glass substrate is lifted from the HFE solvent and undergoes vapor cleaning in the vapor of the HFE solvent. (5) The glass substrate moves to the drying zone, where the HFE solvent attached to it is removed. (6) Drying is complete. ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please contact us or download the catalog.
catalog（1）
Download All Catalogs
Company information
The three "R" themes that Okawa Kousan Co., Ltd. places great importance on are as follows: ◆ R1 - Recycling (Low Running Costs) We recover all solvents used in the purification process and return them to the cleaning system. ◆ R2 - Repair (Stable Production) We always strive for prompt maintenance and inspections. Regular maintenance is recommended to prevent downtime in the manufacturing process. ◆ R3 - Reduction (Promotion of Eco-friendliness) We reduce the amount of energy and solvent consumption associated with the cleaning equipment.
