"Don't throw away expensive HFE/HFO solvents – reuse them!" Simply put the waste liquid into the system and recover over 99% of it in a condition equivalent to new!
Waste liquids containing used HFE/HFO/chlorinated solvents still contain recoverable solvents. Okawa Kogyo's solvent recovery system "OK-GREEN1" can stably recover high-quality recycled solvent simply by introducing waste liquid containing HFE/HFO/chlorinated solvents. It reliably recovers solvents from waste liquid in a condition equivalent to new solvent. The waste liquid after recovery is not difficult-to-treat fluorinated waste liquid, but can be treated as ordinary waste oil or industrial waste. It reduces waste liquid treatment costs while realizing the reuse of expensive solvents. Continuous operation is also possible by connecting it to a cleaning machine, minimizing equipment downtime. For companies that use large quantities of HFE/HFO/chlorinated solvents, we recommend adopting OK-GREEN1 from both environmental and cost perspectives. Furthermore, by integrating it into a cleaning system, it is now possible to continuously reuse the solvent while removing only the "dirt" during cleaning. [Features] ○ Recovers recycled liquid simply by introducing used waste liquid ○ Solvent recovery rate is 100% ○ Can be connected to a cleaning machine ○ Reduces industrial waste disposal costs ○ Recovered solvent can be reused with confidence
Inquire About This Product
basic information

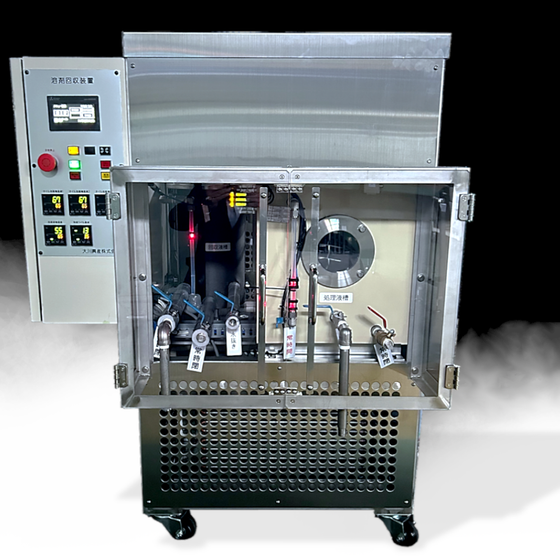

Product Name: Solvent Recovery System OK-GREEN1 (Patent Registered No. 4157804) Recovery Rate: 99% or more Compatible Solvents: Fluorinated solvents (HFE, HFO series) / Chlorinated solvents (dichloromethane, trichloroethylene, etc.) Examples of Use: Waste liquid from fluorinated cleaning equipment, waste liquid from chlorinated degreasing and cleaning Electrical Specifications: AC200V 1.5kW Device Dimensions: 700W x 850D x 1255H mm (main unit only) Weight: Approximately 120kg (excluding solvent) Processing Tank Capacity: Waste liquid tank: Approx. 8L, Recovered liquid tank: Approx. 8L, Pre-treatment pool tank: Approx. 20L *For other functions and details, please download the catalog and contact us.
Price information
-
Delivery Time
Applications/Examples of results
[Applications] ○Chlorinated organic solvents Methylene chloride ○Inert organic solvents HFE, HFO, etc. Usable solvents: HFE-based: Asahi Clean AE-3000, HFO-based: AMOLEA AS-300, dichloromethane, etc. Benefits of introduction: Reduction in solvent purchase volume / Reduction in waste volume / Reduction in CO₂ emissions / Enhanced safety measures Remarks: Catalog downloads and technical consultations are available.
Detailed information
-
An example of combining OK-GREEN1 with the co-solvent method.
catalog（1）
Download All Catalogs
Company information
The three "R" themes that Okawa Kousan Co., Ltd. places great importance on are as follows: ◆ R1 - Recycling (Low Running Costs) We recover all solvents used in the purification process and return them to the cleaning system. ◆ R2 - Repair (Stable Production) We always strive for prompt maintenance and inspections. Regular maintenance is recommended to prevent downtime in the manufacturing process. ◆ R3 - Reduction (Promotion of Eco-friendliness) We reduce the amount of energy and solvent consumption associated with the cleaning equipment.
