This is a case study of the road improvement work for the Nanyuan Fuchinen Line.
We would like to introduce a case study of the construction of "Super Sol," an artificial lightweight material made by crushing and sintering waste glass. This case study focuses on the protection of arch culverts. Super Sol was used as lightweight fill to reduce the load on the arch culverts and decrease the earth pressure on the reverse T-shaped retaining walls. The material allowed for flexibility in construction on complex terrains and contributed to shortening the construction period. 【Construction Case Study】 - Project Details: Improvement of the Nanbara Fuchinen Line Road - Application Category: Civil Engineering / Protection Structures Backfill / New Retaining Structures - Client: Okinawa Prefecture - Construction Location: Chinen Village, Okinawa Prefecture - Required Performance: Lightweight, Load Reduction, Earth Pressure Reduction For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Super Soil Application Examples】 [Civil Engineering] ○ Lightweight Fill → Roadbed → Subgrade → Leveling → Temporary Works ○ Backfill for Structures → Retaining Walls → Reinforced Soil Walls → Abutments ○ Foundations for Structures ○ Protection of Structures → Existing Structures → New Structures → Underground Installations ○ Backfilling ○ Raising → Platforms → Others ○ Drainage Materials ○ Others [Greening] ○ Soil Improvement Materials → Ground Improvement → Planting ○ Drainage Materials → Rooftops → Under Planting → Subsurface Drainage → Pot Bottom Stones ○ Oxygen Pipes ○ Hydroponics ○ Horticultural Materials (for Retail) [Agriculture] ○ Soil Improvement Materials → Mixed Soil ○ Drainage Materials → Subsurface Drainage ○ Mulching Materials [Purification] ○ Water Quality Purification Materials ○ Rainwater Storage Tank Filling Materials [Livestock] ○ Dairy Wastewater Purification → Lightweight Floating Materials ○ Deodorizing Materials → Deodorizing Tanks [Others] ○ Insulation Materials ○ Deodorizing Materials ○ Humidity Control Materials ○ Filtration Materials ○ Security Gravel ○ Other Product Raw Material Mixtures ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please contact us or download the catalog.
catalog（1）

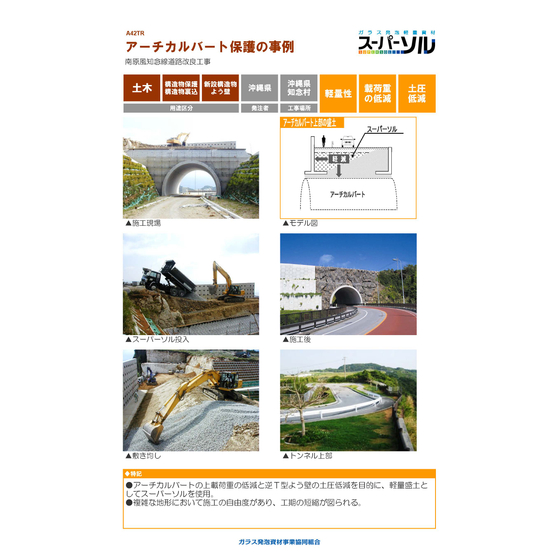

Download All Catalogs![[Super Sol Construction Case] A4 Arch Culvert Protection Case](https://image.mono.ipros.com/public/catalog/image_generated/01/e94/339482/339482_IPROS6423122745395285528_1.jpg?w=120&h=170)
Company information
"Super Sol," made by crushing and sintering waste glass, is a lightweight material with countless holes, characterized by its porous structure. It is an artificial lightweight aggregate with an irregular particle size ranging from 2 to 75 mm. There are products with varying specific gravities and water absorption rates to suit different applications. Composed of soil components, it is an eco-friendly product with an eco-mark. **Features of Super Sol:** - **Lightweight:** It is 1/6 to 1/5 the weight of soil, with a proven track record as a lightweight fill material. By combining it with crushed stone, the unit weight can be controlled between 4 kN/m³ and 11 kN/m³. - **Drainage:** It can be used as a drainage material in civil engineering and greening projects. - **Aeration and Water Retention:** It can be used as an inorganic soil amendment for greening. - **Workability:** Its lightweight nature makes it easy to handle, facilitating construction in distorted terrains and narrow spaces. Like crushed stone, it can be installed through spreading and compaction without the need for curing time or special techniques. - **Stability:** Being mineral-based and inorganic, it is physically and chemically stable and does not corrode. - **Safety:** Since it is made from naturally derived glass, Super Sol is also composed of soil components, making it a highly safe material for the surrounding environment.
