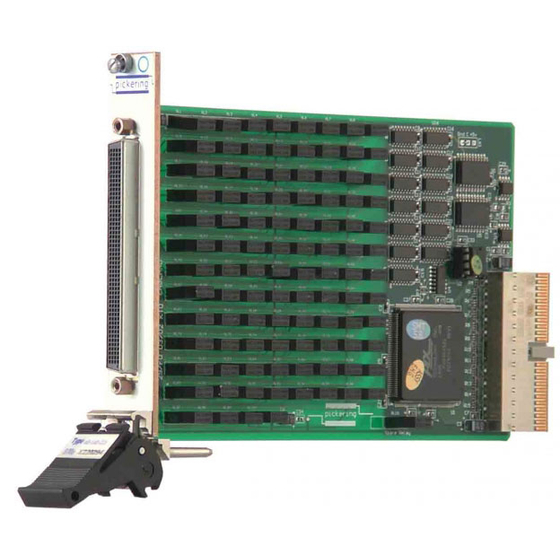

Automated Test System "PXI High-Density General-Purpose Switch Module"
Ruthenium lead relay solutions to maximize signal quality.
The "PXI High-Density General-Purpose Switch Module" is an ideal product for requirements that require many normally open relays. The lead relay module uses relays with ruthenium that exhibit excellent performance with low to medium load contacts. It also provides solutions for mechanical relays that are optimal for high-load applications. We can also accommodate the assembly of connector cables used for wiring between modules. 【Features】 ■ Up to 100 relays per module ■ SPST, DPST, and SPDT configurations ■ Solutions for mechanical relays for high loads ■ 200-pin front panel connector ■ Simple and quick detection of relay anomalies on LXI or PXI switch systems Please contact us for more details.
Inquire About This Product
basic information
【Specifications and Lineup】 [Voltage: 150VDC/100VAC Number of Slots: 1] ■SPST(NO): Current 1A ・Configuration: x50, x75, x100 ・SW Type: EMR, Reed Relay ■SPDT(NC): Current 1A ・Configuration: x50, x75, x100 ・SW Type: EMR ■SPDT: Current 0.25A(1A), 1A ・Configuration: x48, x64 ・SW Type: Reed Relay, EMR ■DPST: Current 1A ・Configuration: x50 ・SW Type: Reed Relay, EMR *For more details, please contact us.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
【Usage】 ■Ideal for requirements that need many normal open relays *For more details, please contact us.
