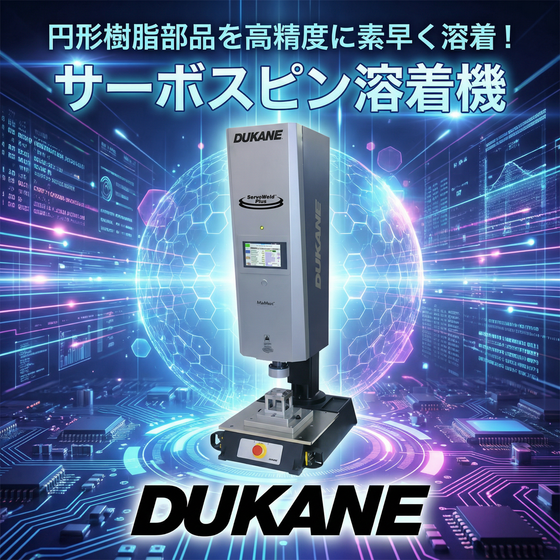

Precision control of pressure and rotation on two axes with a servo motor! The new Duquesne Spin Welder SSW series has become easier to use with support for Japanese display.
The newly upgraded Duquesne's new spin welding machine "SSW Series" precisely controls the two axes of pressure and rotation with servo motors, enhancing the accuracy and stability of spin welding. In addition to the conventional speed control, it now features a new "Melt-Match mode" (torque control mode) for pressure control. A speed profiling mode has also been added, allowing for speed switching during welding. The larger front LCD touch panel has been made more user-friendly by enabling Japanese display in response to customer requests. Additionally, it is now possible to output welding result data and graph data to USB memory sticks, enhancing the data management capabilities.
Inquire About This Product
Related Videos
basic information
For detailed specifications, please refer to the catalog.
Price range
P5
Delivery Time
※1 to 1.5 months
Applications/Examples of results
Welding of circular welded parts of thermoplastic products such as pump housings, engine covers, filter housings, and tank nozzles.
Line up（3）
| Model number | overview |
|---|---|
| SSW3000 | Maximum rotational speed: 3000rpm / Maximum rotational torque: 21N·m / Maximum load: 2.2kN |
| SSW4000 | Maximum rotational speed: 4000rpm / Maximum rotational torque: 12N·m / Maximum load: 1.5kN |
| SSW800 | Maximum rotational speed: 800rpm / Maximum rotational torque: 80N·m / Maximum load: 2.6kN |
catalog（2）
Download All Catalogs
Company information
Dukane Japan is the Japanese subsidiary of Dukane IAS LLC, headquartered in St. Charles, Illinois, USA. It supports various plastic welding processes with its unique advanced technologies, including ultrasonic servo welders utilizing servo control technology, ultrasonic probe systems that can be controlled and monitored from external PLCs via Ethernet IP connection or CC-Link connection, vibration welders capable of high-precision welding with high mechanical rigidity, and the Servo Weld Plus (Dual Servo) spin welder that performs rotation and pressure control via servo. Additionally, with the motto "One World, One Dukane," it offers comprehensive support in countries and regions outside Japan through a worldwide network that spans major industrial nations. This allows for the relocation of equipment purchased in Japan to overseas locations for local service, as well as the maintenance of equipment relocated from abroad in Japan.
