MuCell Microcellular Foam Molding Equipment for Injection Molding T Series and P Series

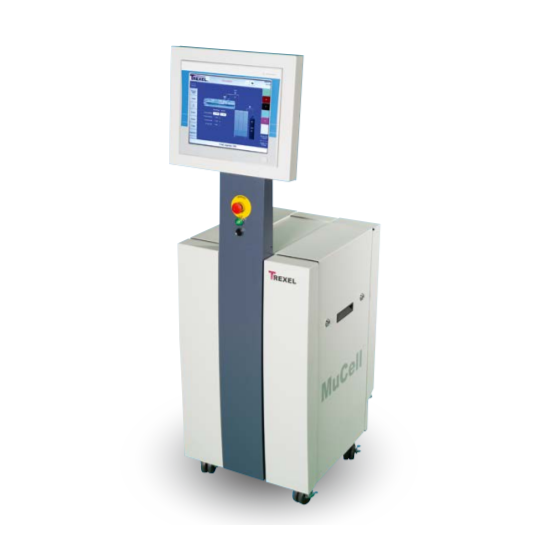

MuCell Supercritical Fluid Supply Device T-100J / T-200J / T-300J / T-301J / P-300J
Lightweighting through foaming and thinning of resin parts, reduction of plastic consumption, improvement of dimensional accuracy, and shortening of molding cycle times can enhance productivity!
The business of Trexel Japan will be transferred to Matsui Manufacturing Co., Ltd. in February 2024. Please direct any inquiries to Matsui Manufacturing Co., Ltd. Trexel Japan Co., Ltd. introduces the "MuCell" microcellular injection molding system, which offers unique characteristics not found in conventional injection molding, such as increased design flexibility and cost reduction for thermoplastic material injection molding. This technology has many advantages, including lightweight plastic parts, reduced resin usage, improved dimensional accuracy (reduction of sink marks and warpage), and low-pressure molding, and is being adopted in various fields such as automotive, home appliances, medical devices, food packaging, and consumer goods worldwide. Additionally, unlike chemical foaming, the pulverized material retains properties equivalent to virgin material, making it suitable for the production of consumer products where recyclability and environmental considerations are required. 【Features】 ■ Lightweight and reduced resin usage ■ Improved dimensional accuracy (reduction of sink marks and warpage) ■ Low-pressure molding due to reduced foaming and resin viscosity ■ Reduced mold costs ■ Increased design flexibility ■ Sustainability *For more details, please feel free to contact us.
Inquire About This Product
basic information
The MuCell microcellular injection molding device developed by Trexel Inc. utilizes a physical foaming process that allows for the formation of fine cells below 100 micrometers throughout the molded product. This is achieved by directly mixing and dissolving supercritical nitrogen and carbon dioxide at high pressure into the molten resin within the cylinder of the molding machine, and then injecting it into the mold to take advantage of the pressure drop. The gases that can be used are nitrogen, which is extracted from the atmosphere, and carbon dioxide, a byproduct of industrial production. Since these gases are chemically stable, there is no need to consider issues related to recycling, hydrolysis effects on the resin, or mold contamination that can arise with chemical foaming. *For more details, please download the PDF or feel free to contact us. MuCell is a registered trademark of Trexel Inc.
Price range
Delivery Time
Applications/Examples of results
■Automotive functional components (Lock housings, cylinder head covers, fan shrouds, etc.) ■Automotive interior parts (Air conditioning control bezels, door trim plates, center consoles, etc.) ■Packaging sector (Food containers, thin-walled margarine containers, yogurt cups) ■White goods (Base plates) ■OA equipment and printer parts (Covers, paper feeding components, frames) ■Consumer sector (Shoe soles, compost bases) 【Other applications】 ■EMC countermeasure connectors ■Pallet covers ■Footwear, etc. We have a proven track record in a wide variety of fields. 【Examples】 Utilizing the low-pressure molding characteristics of MuCell, which features foaming and reduced resin viscosity, we combined film insert molded products with aluminum molds to achieve weight reduction, shortened molding cycles, and reduced mold costs. *For more details, please download the PDF or feel free to contact us.
Line up（5）
| Model number | overview |
|---|---|
| T-100J | MuCell (Mucell) SCF equipment for small molded products weighing 10-140g |
| T-200J | MuCell (Mucell) SCF equipment for medium and small molded products weighing 120-600g |
| T-300J | MuCell (Mucell) SCF equipment for large molded products weighing 600-3000g |
| T-301J | MuCell (Mucell) SCF equipment for extra-large molded products weighing over 3000g |
| P-300J | MuCell (Mucell) SCF equipment for thin-walled high-cycle molded products (cycle time under 10 seconds) |
Company information
The business of Trexel Japan was transferred to Matsui Seisakusho Co., Ltd. in February 2024. Please contact Matsui Seisakusho for any inquiries moving forward. TEL: 03-5436-3521 https://matsui.net/product/mucell/ Thank you for your continued support. Trexel Japan Co., Ltd. provides total solutions for foam molding, not only through the sale of equipment but also from design to production, to help our customers create better products. By combining our industry-leading know-how with innovative resin foam products, we enable our customers to achieve cost reductions and environmental goals through weight reduction, reduced resin usage, improved dimensional accuracy, increased productivity, and reduced development man-hours. Please feel free to contact us with any requests. About Trexel Headquartered in Wilmington, just outside of Boston, Massachusetts, we have subsidiaries in Germany, Japan, and China. Our specialized technicians in each country provide global support to our customers.
