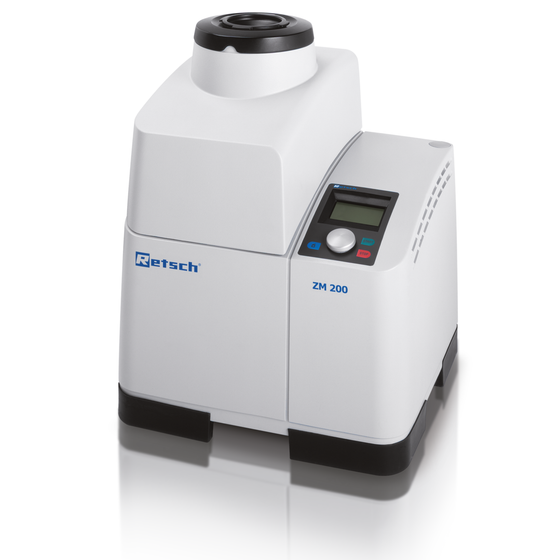

Rapidly crush soft to medium-hard samples, as well as fibrous materials.
It has efficient crushing power and a wide range of accessories, allowing for the adjustment of analytical samples in a short time while maintaining their characteristics. Advantages: - Powerful motor compatible with 200-240V - Instant crushing without damaging samples, achieving both preliminary and fine grinding with one machine - Rotor speed adjustable from 6000 to 18000 rpm - Patented cassette for maximum sample recovery rate and easy cleaning - All parts in contact with the sample can be removed and attached without tools - Final particle size determined by screen opening of 0.08 to 10 mm - Safety-conscious automatic locking grinding chamber cover - Design minimizes dust entry around the motor and electronic circuits - Interactive condition input via LCD screen and a single button - A wide range of applications supported by abundant accessories
Inquire About This Product
Related Videos
basic information
Features Application: Micronization Nature of input sample: Soft, Medium-hard, Brittle, Fibrous Crushing method: Impact, Shear Sample input size: < 10 mm Crushing particle size: < 40 µm Input sample amount: Standard cassette 300ml Rotation speed 50Hz (60Hz): 6,000 - 18,000rpm (variable in 50rpm increments) Rotor: 6-blade rotor / 12-blade rotor / 24-blade rotor / 8-blade mini rotor Material of crushing set: Stainless steel, Titanium, Steel 1.4404, Wear-resistant coated stainless steel Screen: Trapezoidal holes 0.08 / 0.12 / 0.20 / 0.25 / 0.50 / 0.75 / 1.00 / 1.50 / 2.00 mm Round holes 3.00 / 4.00 / 5.00 / 6.00 / 10.00 mm Receiver capacity: Standard cassette 900ml Motor: 3-phase asynchronous motor with frequency converter Voltage: 100V-240V, 50/60Hz Power supply: Single-phase Power consumption: 1300 W W x H x D (when cover is closed): 410 x 515 x 365 mm Body weight: ~ 38 kg Standards: CE
Price information
-
Delivery Time
Applications/Examples of results
Application examples Glass, quartz, coke, silicon, slag, cement clinker, alloys, construction materials, basalt, stone, coal, refractory clay, granite, oxide ceramics, minerals, ores, feldspar, ceramics, ...
