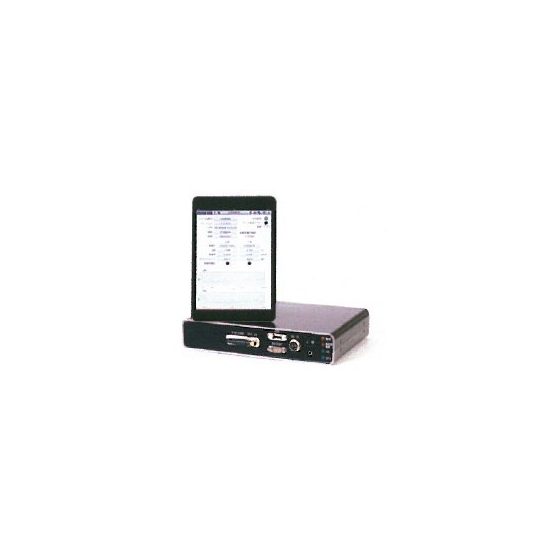

A walking-type automatic radiation measurement system that visualizes spatial dose rates in real time.
"KURAMA-m" is a system that can automatically measure and record the ambient radiation dose rate in living areas. With a compact device configuration, the measurer can measure radiation levels while walking. By using a radiation detector and GPS, it is possible to record radiation levels in conjunction with location information. Additionally, by switching the main unit's switch, high-precision DGPS and other devices can be connected and used externally. Data during measurement can be displayed on a monitor in real-time, allowing for smooth verification of measurement values in the field. Measurement data can be shared in real-time over a network, and it is also possible to display it plotted on a map. 【Features】 ■ Automatic radiation measurement ■ Automation via wireless technology ■ Real-time visualization *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Operating Specifications - Scintillator: CSI (TI) 38mm × 38mm × 25mm - Detection Element: MPPC (Multi-Pixel Photon Counter) - Counting Efficiency: CS137: Over 400 cpm at 0.01 μSv/h - Energy Range: 30 keV to 2 MeV - Energy Resolution: 8.5% for Cesium-137 at 662 keV - Measurement Range: 0.001 μSv/h to 10 μSv/h - Sampling Time: Configurable from 1 to 60 seconds ■Physical Characteristics - Dimensions (Main Unit): 260(W) × 180(D) × 50(H) mm ■Power Requirements - Power Supply: 9 to 30 VDC (Compatible with cigarette lighter socket) ■Environmental Specifications - Operating Temperature Range: -10 to 50°C *For more details, please refer to the PDF document or feel free to contact us.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Matsuura Denko Co., Ltd. has over 30 years of reliable technology as a manufacturer of automatic control panels and measuring instruments, providing consistent support from design to implementation. Matsuura Denko is the only alliance partner of National Instruments (NI) in the Hokuriku and Koshinetsu regions, and we build measurement and control systems using NI's excellent hardware and software. Additionally, we have many certified LabVIEW developers on our team. We are confident in our ability to construct measurement and control automation systems based on LabVIEW and PLC. We respond to the needs of the FA industry, including control and measurement, with the latest technology.
