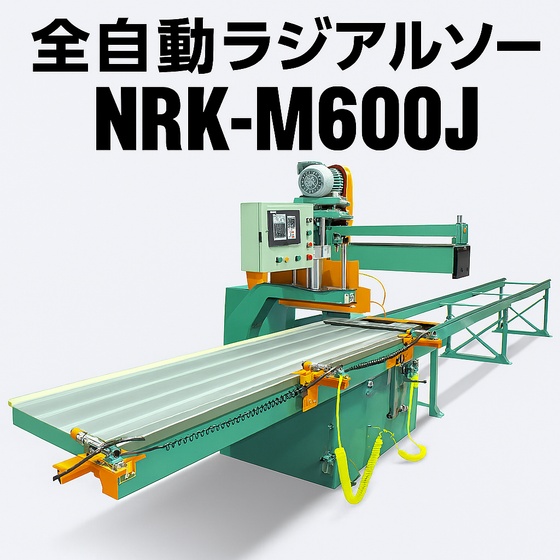

Heavy cutting support! High-speed processing of lateral grooves with a fully automatic radial saw.
The "NRK-M Type" is a fully automatic housing component groove processing machine designed for heavy cutting. With a powerful motor mounted on top and a belt drive system, the processing capability is enhanced, allowing for rapid heavy cutting. The tool axis travel guide uses LM guides to maintain precision over a long period. The front and rear travel of the tool axis is stabilized through ball screw feeding or air-hydraulic methods for consistent cutting operations. 【Features】 ■ Rapid heavy cutting capabilities ■ Processing cycle time is shortened due to the tool jump mechanism ■ Easy operation for anyone through a uniquely developed dedicated operation screen ■ Accurate positioning without cumulative errors 【Other Features】 ■ The positioning operation screen comes standard with a large touch panel ■ By inputting the table feed pitch and cutting count in sequence using the numeric keypad, the table moves and cutting is performed in that order ■ The motor for table movement uses a servo motor ■ Three-speed shifting is possible: high, medium, and low ■ Table movement dimension measurement is conducted using a magnetic scale, allowing for measurements in 0.1mm increments, maintaining accuracy semi-permanently.
Inquire About This Product
Related Videos
basic information
Specifications - Table dimensions: Width 600mm × Length 4000mm - Main spindle motor: 5.5kW - Tool front and rear travel: Air-hydraulic type - Tool height adjustment: Manual handle type - Material hold-down: Upper hold-down, pneumatic type Options - Tool front and rear travel: Ball screw feed with inverter control - Tool front and rear travel speed: High-speed specification 40m/min - Tool height adjustment: Numeric input automatic positioning - Hold-down air cylinder from the front
Price range
Delivery Time
※Delivery dates may vary, so please feel free to contact us.
Applications/Examples of results
It is mainly used for grooving processing of residential materials, columns, walls, and roofing materials. - Residential panel processing - Ventilated batten processing, etc.
Detailed information
Line up（1）
| Model number | overview |
|---|---|
| NRK-M600J | Table dimensions: Width 600 mm × Length 4000 mm |
